B82792C0106N365

Overview

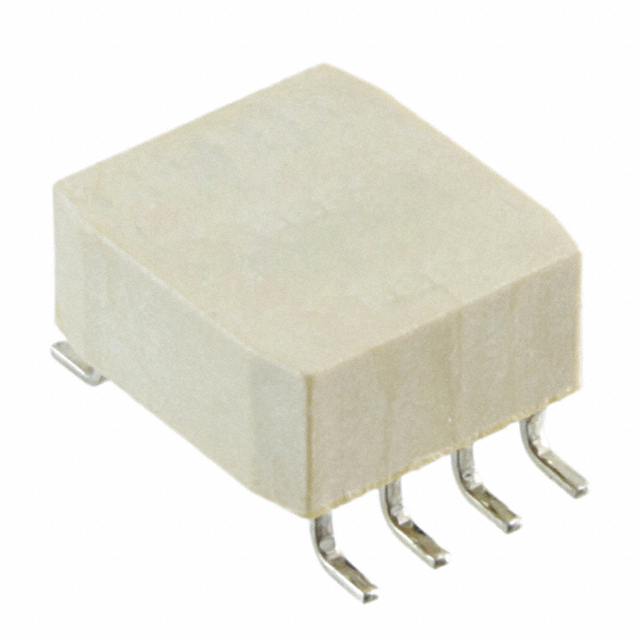

The B82792C0106N365 is a data line choke manufactured by EPCOS, now part of TDK Electronics. It is designed for telecommunications applications, specifically xDSL transformers and signal lines. The component features a current-compensated ring core with a ferrite core and an LCP case rated UL 94 V-0. It utilizes silicone potting and bifilar winding technology to ensure stability. The device is suitable for reflow soldering processes and complies with RoHS standards, making it appropriate for modern electronic manufacturing environments requiring reliable electromagnetic interference suppression.

Feature Summary

• Utilizes a current-compensated ring core design with bifilar winding for effective signal line filtering
• Encased in a UL 94 V-0 rated LCP housing with silicone potting for environmental protection
• Compatible with standard reflow soldering processes and meets RoHS compatibility requirements

Applications

• Telecommunications equipment
• xDSL transformer circuits
• RF equipment signal lines

Procurement Notes

Verify the manufacturer designation carefully, as EPCOS operations have been integrated into TDK Electronics. Confirm that the specific suffix N365 corresponds to the required lead spacing and packaging format for your assembly process. Ensure the component is sourced from authorized distributors to guarantee authenticity and adherence to the original technical specifications provided by the manufacturer.

Selection Notes

Select this component when designing telecommunications interfaces requiring robust common-mode noise suppression for data lines. The bifilar winding and ring core construction make it suitable for applications where signal integrity is critical. Consider the UL 94 V-0 rating if fire safety standards are a priority in the final product enclosure design.

Part Context

This component belongs to the B82792 series of data line chokes produced by EPCOS/TDK. These components are engineered for high-frequency signal processing in telecommunications infrastructure. The series is characterized by its compact form factor and reliability in harsh electrical environments, serving as a key element in protecting sensitive data transmission lines from electromagnetic interference.

Replacement Considerations

Public confirmed substitute part numbers: B82792C2475N365.
