B82794C0106N465

Overview

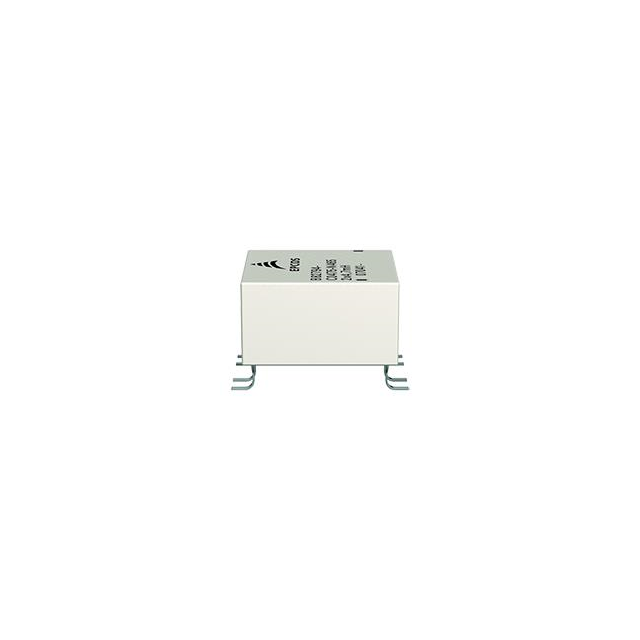

The B82794C0106N465 is a surface-mount common mode choke manufactured by TDK-EPCOS. It belongs to the B82794 series and is designed for signal line filtering applications. The component features two lines and provides a nominal inductance of 10 mH with a rated current capacity of 600 mA.

Feature Summary

• Provides electromagnetic interference suppression for signal lines
• Designed for surface-mount technology integration
• Filters common mode noise in dual-line configurations

Applications

• Signal line filtering
• Electromagnetic compatibility improvement
• Electronic system reliability enhancement

Procurement Notes

Verify the manufacturer designation as TDK-EPCOS or EPCOS - TDK Electronics on official documentation. Confirm the part number B82794C0106N465 matches the specific 10 mH, 600 mA specifications. Ensure the source document explicitly identifies this part as a common mode choke for signal lines to avoid confusion with similar series components.

Selection Notes

Select this component when a 10 mH inductance is required for signal line filtering in surface-mount designs. The 600 mA current rating must align with the circuit's operational requirements. Verify that the B82794 series package dimensions are compatible with the target PCB layout constraints.

Part Context

This component is part of the B82794 series from TDK-EPCOS, which focuses on EMC components. These components are engineered to ensure electromagnetic compatibility and improve the reliability of electronic systems across various consumer and industrial applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data.
