B82796C0225N265

Overview

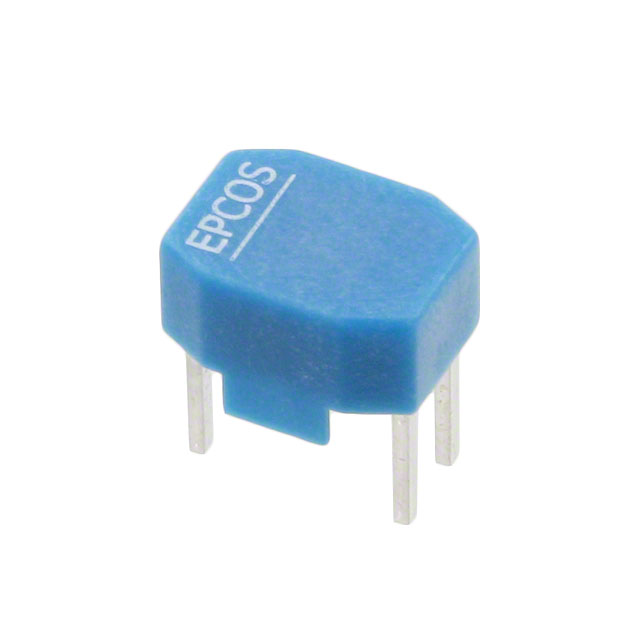

The B82796C0225N265 is a through-hole common-mode choke manufactured by EPCOS (TDK Electronics). It features a rated inductance of 2.2 mH and a rated current of 500 mA. The component is designed for two-line applications to provide common-mode suppression. It operates within a temperature range of -40°C to +125°C and carries RoHS compliance status as lead-free.

Feature Summary

• Provides common-mode suppression for data and signal lines
• Utilizes a ring core construction with bifilar winding
• Case material meets UL 94 V-0 flame retardancy standards

Applications

• Suppression of asymmetrical interference on data lines
• EMI filtering in communication equipment
• Signal line protection in industrial control systems

Procurement Notes

Verify the specific suffix N265 against official TDK-EPCOS documentation to confirm package type and termination style. Ensure the selected variant matches the required through-hole mounting configuration and thermal ratings for the target application environment.

Selection Notes

Select this component when high inductance values are required for low-frequency common-mode noise attenuation. Consider the 500 mA current rating and physical dimensions to ensure compatibility with PCB layout constraints and thermal management requirements in the final assembly.

Part Context

This part belongs to the B82796 series of common-mode chokes from EPCOS, now under TDK Electronics. The series is engineered for robust performance in demanding electronic environments, offering reliable interference suppression for sensitive signal transmission lines across various industrial and consumer applications.

Replacement Considerations

Consult official TDK-EPCOS cross-reference lists for verified substitutes. Ensure any replacement maintains identical inductance, current rating, and mechanical footprint specifications.
