B82806D0060A120

Overview

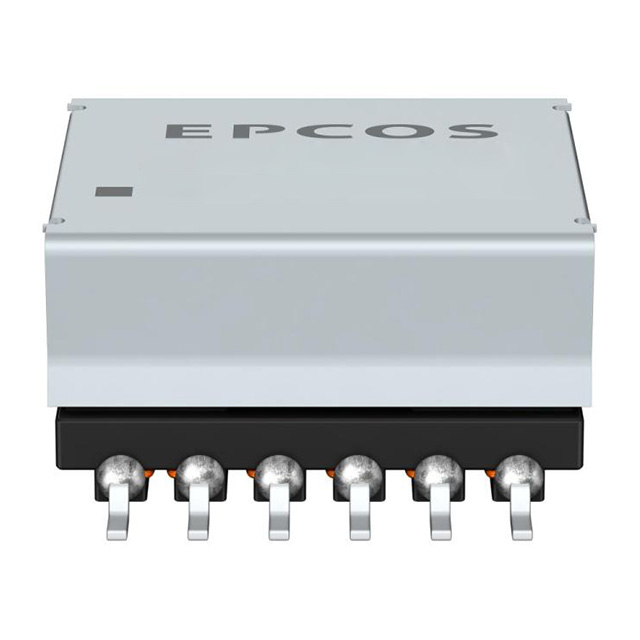

The B82806D0060A120 is a pulse transformer designed for Power over Ethernet (PoE) applications, specifically supporting the IEEE 802.3bt standard. It provides a secondary enhanced power output of 60W. The component features an inductance value of 100uH and is manufactured by EPCOS, a TDK Group Company.

Feature Summary

• Supports IEEE 802.3bt PoE++ standard
• Provides 60W secondary enhanced power output
• Designed for Ethernet interference suppression

Applications

• IEEE 802.3bt compliant PoE++ systems
• Secondary enhanced power Ethernet infrastructure
• Network interface transformers requiring 60W output

Procurement Notes

Verify the specific datasheet version for the B82806D0060A120 to confirm pinout compatibility and thermal limits. Ensure the application environment meets the operating temperature specifications defined in the official EPCOS documentation before integration.

Selection Notes

Select this component when designing systems requiring compliance with the latest IEEE 802.3bt PoE++ standards. It is suitable for applications needing higher power delivery capabilities compared to earlier PoE generations, ensuring reliable signal integrity and power transmission.

Part Context

This part belongs to the B82806D series of EMI suppression capacitors and pulse transformers from EPCOS (TDK). The series is engineered for robust performance in network communication environments, offering high reliability and electromagnetic compatibility for modern Ethernet deployments.

Replacement Considerations

Check for direct substitutes within the B82806D series or other TDK PoE transformers rated for 60W output. Verify that any replacement maintains IEEE 802.3bt compliance and identical inductance values.
