B84103S0001A060

Power Line Filter Modules Overview

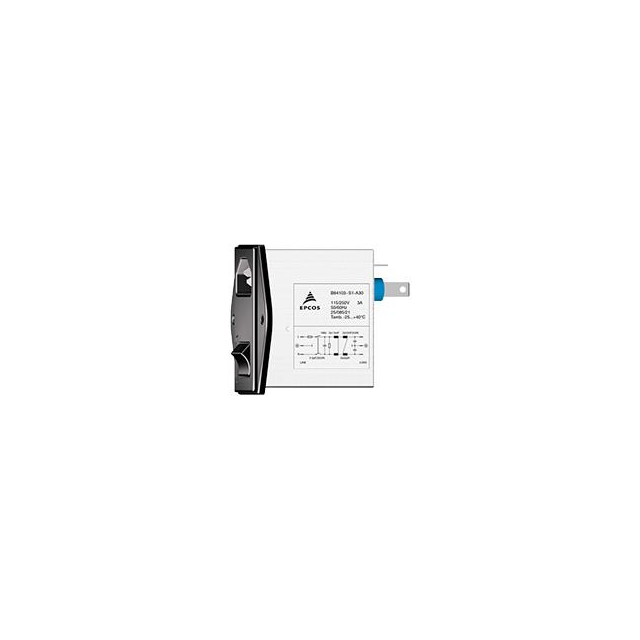

The B84103S0001A060 is a two-stage power line filter manufactured by EPCOS (TDK Electronics). It features a chassis mount configuration and is designed for IEC inlet applications. The component supports a rated current of 6A and operates at a voltage of 250V AC. It includes an integrated switch function within the power line filter assembly.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Integrated switch functionality within the filter housing
• Chassis mount design for secure installation

Power Line Filter Modules Applications

• IEC inlet filter configurations
• Power line noise suppression
• Electronic equipment requiring filtered AC input

Power Line Filter Modules Procurement Notes

Verify the specific ordering code suffix to ensure the correct variant is selected, as suffixes may indicate differences in mounting or terminal types. Confirm that the chassis mount style aligns with the mechanical constraints of the target enclosure. Ensure the 6A rating and 250V AC specification meet the system requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component when a compact, two-stage solution is required for IEC inlet applications. The integrated switch feature simplifies circuit design by combining protection and control functions. Verify that the chassis mount form factor fits the available space and that the 6A current capacity is sufficient for the load.

Power Line Filter Modules Part Context

This part belongs to the B84103 series of EMC filters from TDK Electronics (formerly EPCOS). The series focuses on power line filtering solutions for industrial and commercial electronics. These filters are engineered to meet electromagnetic compatibility standards while maintaining a compact footprint suitable for various electronic assemblies.

Power Line Filter Modules Replacement Considerations

Consult official TDK documentation for direct substitutes. Cross-reference similar two-stage IEC inlet filters with matching 6A ratings and chassis mount styles. Verify electrical parameters and physical dimensions before substitution.
