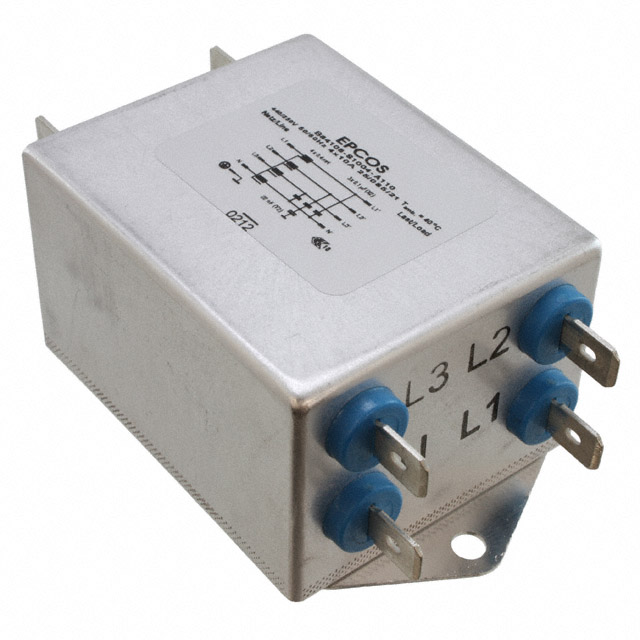

B84108S1004A110 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 440V/250VAC 10A CHAS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84108S1004A110
- Description：LINE FILTER 440V/250VAC 10A CHAS
- Series：B84108
- Mfr：EPCOS - TDK Electronics
- Package：Tray
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V, 250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：ENEC
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84108S1004A110
Power Line Filter Modules Overview
The B84108S1004A110 is a three-phase (Delta) EMC/EMI power line filter module manufactured by EPCOS (TDK). It is designed for industrial applications with a rated voltage of 440/250 V~ at 50/60 Hz and a rated current of 10 A. The component features medium insertion loss characteristics and utilizes quick connect terminals for installation. This single-stage filter provides electromagnetic interference suppression for three-phase systems.
Power Line Filter Modules Feature Summary
- Designed for three-phase Delta power line filtering
- Utilizes quick connect terminal interface
- Provides medium insertion loss for EMI suppression
Power Line Filter Modules Applications
- Three-phase industrial power systems
- Electromagnetic compatibility filtering
- Power line noise suppression
Power Line Filter Modules Procurement Notes
This component is officially listed as obsolete with a discontinuation issue date of June 21, 2019. Verification of availability from secondary markets is required. Any replacement must be evaluated against original specifications, noting that interchangeability with recommended alternates like the B84144A0016R120 is not guaranteed by the manufacturer.
Power Line Filter Modules Selection Notes
Selection should focus on verifying the necessity of this specific obsolete part due to its discontinued status. Engineers must assess if the recommended alternate part number meets all electrical requirements, keeping in mind that official interchangeability is not confirmed. Alternative modern solutions may need to be sourced to ensure long-term supply stability.
Power Line Filter Modules Part Context
The B84108 series belongs to TDK Electronics' range of power line filters intended for three-phase systems. These modules are engineered to handle significant currents while maintaining safety standards. The S1004 variant specifically addresses 10 A applications within the Delta configuration framework.
Power Line Filter Modules Replacement Considerations
The recommended alternate part number is B84144A0016R120. However, official documentation states that interchangeability between these parts is not guaranteed. Validation of pinout and electrical performance is essential before substitution.
