B84110A0000A005

Power Line Filter Modules Overview

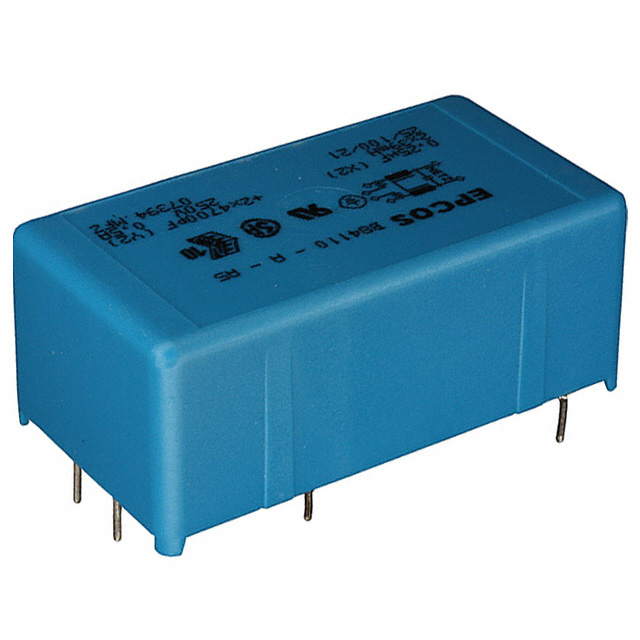

The EPCOS B84110A0000A005 is a two-line power line filter designed for general-purpose applications in single-phase systems. It operates at a rated voltage of 250 V AC/DC and supports frequencies of 50/60 Hz. The component handles rated currents ranging from 0.5 A to 6 A, providing electromagnetic interference suppression for standard electrical circuits.

Power Line Filter Modules Feature Summary

• Provides symmetrical and asymmetrical interference suppression for single-phase power lines
• Designed for general-purpose applications with robust construction
• Supports operation across standard 50/60 Hz frequency ranges

Power Line Filter Modules Applications

• Single-phase power supply filtering
• General-purpose electronic equipment protection
• Electromagnetic compatibility enhancement in low-power circuits

Power Line Filter Modules Procurement Notes

Verify the specific current rating suffix within the ordering code, as the base series covers 0.5 A to 6 A variants. Confirm that the 250 V AC/DC rating aligns with your system's voltage requirements. Ensure the two-line configuration matches your circuit topology before procurement.

Power Line Filter Modules Selection Notes

Select this component when general-purpose EMI filtering is required for single-phase inputs. It is suitable for applications where leakage current limits are not as critical as medical-grade filters but standard suppression is necessary. Verify physical mounting constraints against available housing options.

Power Line Filter Modules Part Context

This part belongs to the EPCOS B84110A series of compact two-line filters. These components are manufactured by TDK Electronics (formerly EPCOS) and are intended for integration into power input stages of various electronic devices to ensure stable operation and compliance with electromagnetic emission standards.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84110A series with different current ratings if higher capacity is needed. Cross-reference with other EPCOS two-line filter families like SIFI-F for medical applications if lower leakage current becomes a requirement.
