B84110A0000A010

Power Line Filter Modules Overview

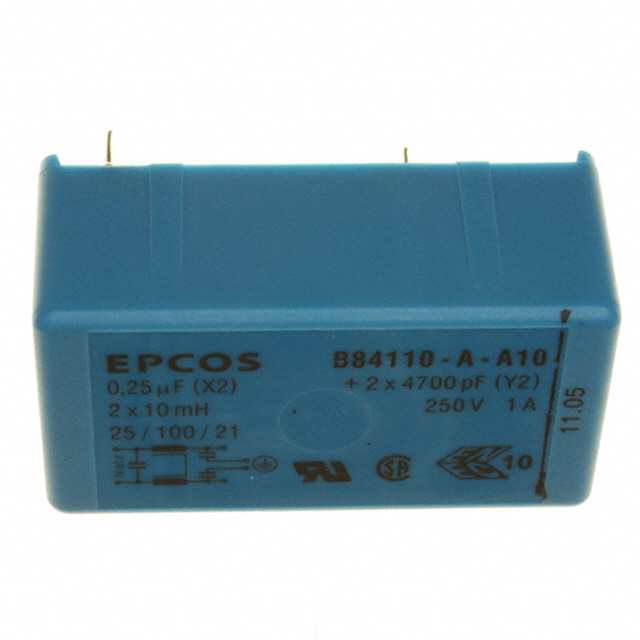

The EPCOS B84110A0000A010 is a power line EMC filter designed for electromagnetic compatibility in electronic systems. It features a rated AC voltage of 250V and a rated DC voltage of 250V, with a maximum rated current of 1A. The component utilizes chassis mounting and quick connect termination styles. It provides high insulation performance with a withstand voltage of 1414V DC between lines for 2 seconds. This filter is engineered to suppress conducted interference on power supply lines.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for power lines
• Supports both AC and DC circuit applications up to specified ratings
• Features robust insulation capabilities for safety isolation

Power Line Filter Modules Applications

• Power supply input filtering
• Industrial equipment EMC compliance
• Consumer electronics noise reduction

Power Line Filter Modules Procurement Notes

Verify the complete part number including all suffixes against official TDK-EPCOS documentation to ensure exact specification matching. Confirm that the quick connect termination style aligns with the target PCB or harness design requirements. Ensure the chassis mount configuration fits the available enclosure space and mechanical constraints of the final assembly.

Power Line Filter Modules Selection Notes

Select this component when a compact, low-current (1A) line filter is required for 250V AC/DC applications. The quick connect terminals facilitate easy integration into existing wiring harnesses without soldering. Verify that the 1414V DC withstand voltage meets the safety isolation standards of the specific system environment.

Power Line Filter Modules Part Context

This component belongs to the EPCOS (TDK Electronics) line of passive electronic components, specifically within their EMC filter portfolio. EPCOS specializes in capacitors, inductors, and filters for automotive, industrial, and consumer markets. The B84110 series represents standard line filters designed for general-purpose noise suppression in power circuits.

Power Line Filter Modules Replacement Considerations

Consult official TDK-EPCOS substitution guides for verified equivalents. Generic cross-references may not match the specific 1A rating, 250V DC withstand capability, or quick connect terminal geometry. Ensure any substitute maintains the same chassis mount form factor and electrical characteristics.
