B84110A0000A020

Power Line Filter Modules Overview

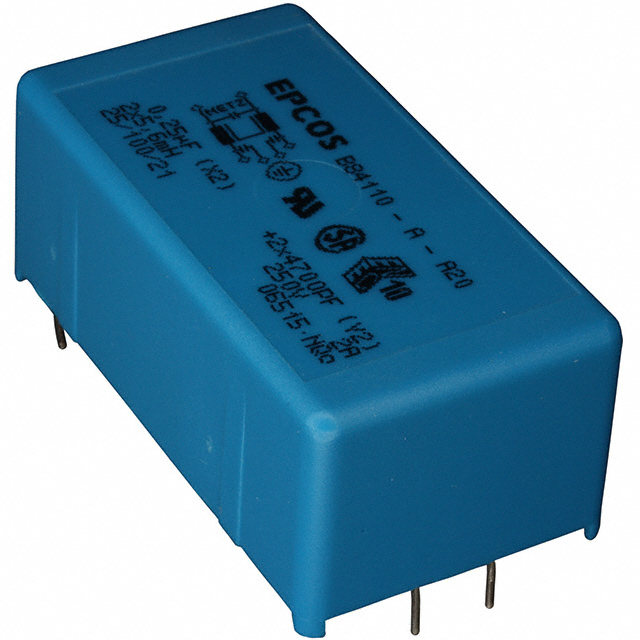

The B84110A0000A020 is a single-phase EMC/EMI line filter manufactured by EPCOS, a TDK Electronics brand. Designed for general-purpose noise suppression in electrical circuits, this component operates at a maximum voltage of 250 VAC and 250 VDC with a current rating of 2 A at 50/60 Hz. It features a single-stage filtering architecture and utilizes solder pin terminations for PCB mounting. The unit provides an inductance of 5.6 mH to effectively attenuate electromagnetic interference.

Power Line Filter Modules Feature Summary

• Provides effective attenuation of electromagnetic interference through single-stage filtering
• Utilizes solder pin termination style for secure printed circuit board integration
• Engineered for stable operation within standard AC and DC voltage ratings

Power Line Filter Modules Applications

• General-purpose electronic equipment requiring noise suppression
• Single-phase power supply input stages
• Electrical circuits needing EMI/EMC compliance

Power Line Filter Modules Procurement Notes

Verify the complete part number against official TDK Electronics documentation to ensure correct configuration. Confirm that the specified 2 A current rating and 5.6 mH inductance align with your specific circuit requirements. Ensure compatibility with the solder pin termination style for your assembly process before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, low-current solution is required for basic EMI suppression. The 2 A rating suits light loads, while the 5.6 mH inductance offers moderate filtering performance. Verify that the physical dimensions and solder pin pitch fit the target PCB layout constraints.

Power Line Filter Modules Part Context

This model belongs to the B84110 series of single-phase EMC filters from EPCOS/TDK. These components are designed for general industrial and consumer applications where compact size and reliable noise reduction are prioritized. The series typically includes variants with different current and inductance ratings to suit various power levels.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement matches the 2 A current, 250 V voltage, and 5.6 mH inductance specifications exactly.
