B84110A0000A040

Power Line Filter Modules Overview

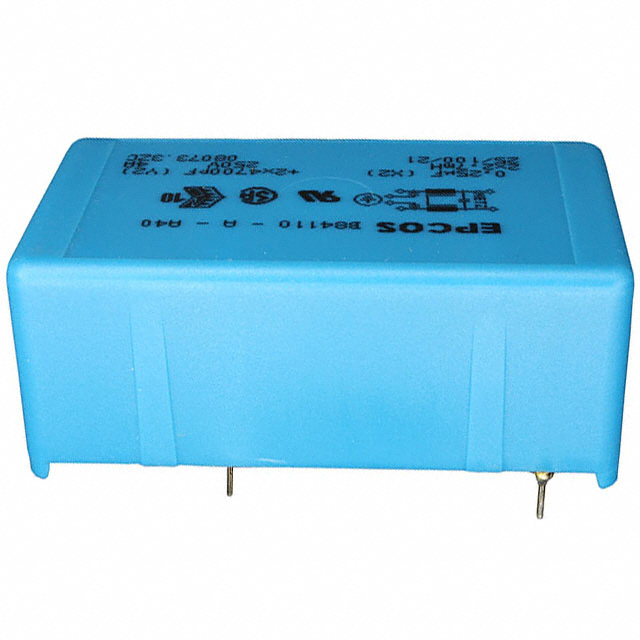

The EPCOS B84110A0000A040 is a single-phase power line filter module designed for general-purpose applications. It operates at a rated voltage of 250 V AC/DC and supports frequencies of 50/60 Hz. The component provides a rated current capacity of 4 A. It utilizes a two-line filter architecture housed in a metal case with polyurethane potting compliant with UL 94 V-0 standards. The physical dimensions are 63.5 mm in length, 51 mm in width, and 32 mm in height. Installation is achieved via panel mount configuration.

Power Line Filter Modules Feature Summary

• Metal housing construction with polyurethane potting for environmental protection
• Single-stage EMC/EMI filtering capability for power lines
• Panel mount installation design for secure integration

Power Line Filter Modules Applications

• General-purpose power line filtering in 1-phase systems
• Industrial equipment requiring electromagnetic compatibility
• Electronic devices needing noise suppression on AC/DC inputs

Power Line Filter Modules Procurement Notes

Verify the specific part number B84110A0000A040 against official TDK Electronics documentation to confirm ratings and mechanical specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for updated datasheets as product specifications may evolve. Confirm packaging and shipping details directly with authorized distributors or the manufacturer.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust single-phase filtering with a 4 A current rating. The metal case and potting provide durability suitable for industrial environments. Verify that the 250 V AC/DC rating aligns with the target circuit's operational parameters. Consider the panel mount form factor when designing the enclosure layout.

Power Line Filter Modules Part Context

This component belongs to the SIFI-A series of two-line filters from EPCOS (TDK). These filters are engineered for normal insertion loss in power line applications. The series covers a range of rated currents from 1 A to 20 A, offering standardized solutions for electromagnetic interference suppression in various electrical systems.

Power Line Filter Modules Replacement Considerations

Consult official TDK Electronics substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and dimensions when evaluating potential substitutes.
