B84110B0000A014

Power Line Filter Modules Overview

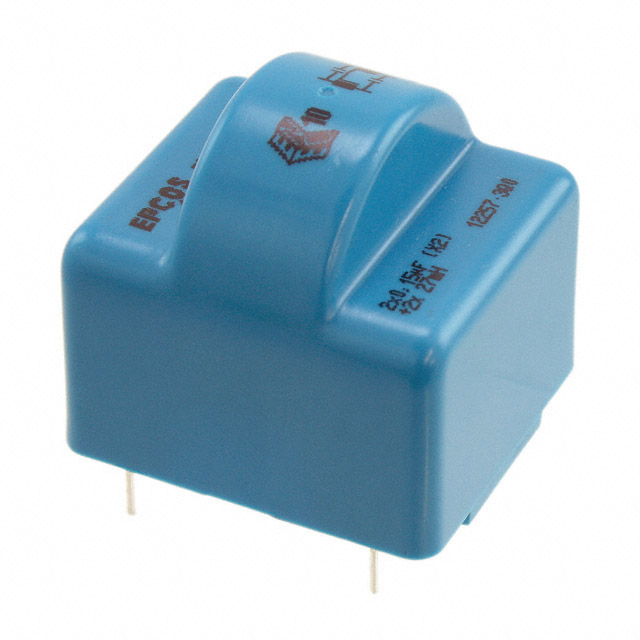

The B84110B0000A014 is a single-phase EMI line filter designed for PCB mounting. It features a rated voltage of 250 VAC/VDC and a rated current of 1.4 A at 50/60 Hz. The component utilizes through-hole termination with PCB pins and operates within a standard frequency range. Its construction includes a plastic case suitable for general-purpose applications requiring high insertion loss.

Power Line Filter Modules Feature Summary

• Provides high insertion loss for effective electromagnetic interference suppression
• Designed for direct printed circuit board mounting via through-hole pins
• Utilizes a plastic case construction for cost-effective integration

Power Line Filter Modules Applications

• Low-performance switch-mode power supplies
• Television sets
• Data systems and small-size equipment
• Industrial electronics
• DC applications

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official TDK/EPCOS documentation to confirm exact electrical ratings and mechanical dimensions. Ensure the selected variant matches the required current and voltage specifications for the target application. Cross-reference certification marks such as UL, CSA, or VDE if regulatory compliance is mandatory for the end product.

Power Line Filter Modules Selection Notes

Select this component for single-phase systems requiring compact EMI filtering solutions. Consider the 1.4 A current rating and 250 VAC/VDC voltage limit when designing the power stage. Evaluate the through-hole mounting style against available PCB space and assembly requirements. Confirm that the plastic housing meets environmental constraints for the intended operating conditions.

Power Line Filter Modules Part Context

This component belongs to the B84110 series of two-line filters manufactured by EPCOS, now part of TDK Electronics. The series is engineered for general-purpose applications in single-phase power systems. These filters are characterized by their cost-effectiveness and suitability for consumer and industrial electronics where moderate noise suppression is sufficient.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS databases for verified substitute part numbers within the B84110 series or compatible families. Do not assume interchangeability based on generic specifications alone. Verify that any alternative component matches the critical parameters of rated current, voltage, and mounting type.
