B84111A0000A030

Power Line Filter Modules Overview

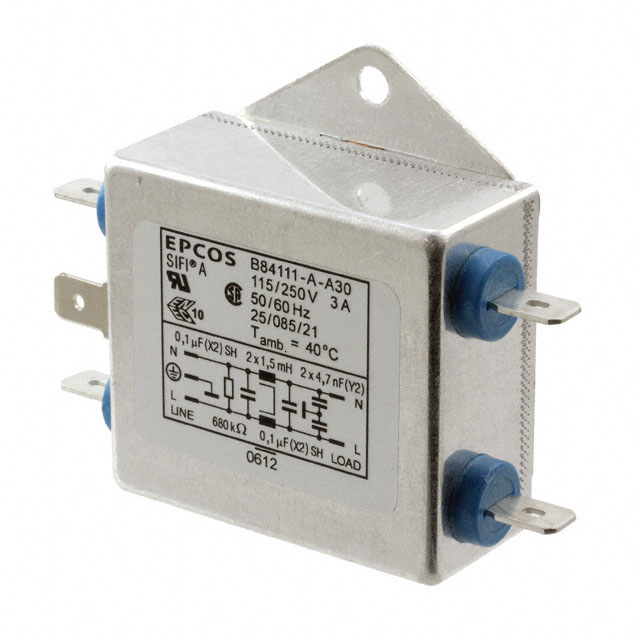

The B84111A0000A030 is a single-phase EMI line filter manufactured by EPCOS (TDK). It features a rated AC voltage of 250 V and a rated DC voltage of 250 V. The component supports a rated current of 3 A with an inductance of 1.5 mH. Designed for chassis mounting, it operates at frequencies of 50/60 Hz. The unit complies with RoHS standards and holds UL, CSA, and VDE certifications.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis panel mount construction
• RoHS compliant manufacturing

Power Line Filter Modules Applications

• General purpose power line filtering
• AC mains input stages
• Electronic equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific suffix against official EPCOS documentation to confirm exact electrical ratings and mechanical dimensions. Ensure the selected variant matches the required current and voltage specifications for the target application. Confirm certification requirements such as UL or VDE are met for the intended market.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase EMI attenuation in compact chassis-mounted designs. Verify that the 3 A current rating and 250 V voltage limits align with system parameters. Consider the 1.5 mH inductance value for circuit compatibility and ensure physical mounting constraints accommodate the chassis installation method.

Power Line Filter Modules Part Context

This component belongs to the B84111 series of single-phase EMI filters from EPCOS (TDK). The series offers various current ratings and configurations for power line noise suppression. These filters are designed to meet international safety and EMC standards for electronic equipment.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for equivalent single-phase EMI filters with matching 3 A current and 250 V ratings. Verify mechanical footprint and terminal configuration compatibility before replacing.
