B84111A0000B060

Power Line Filter Modules Overview

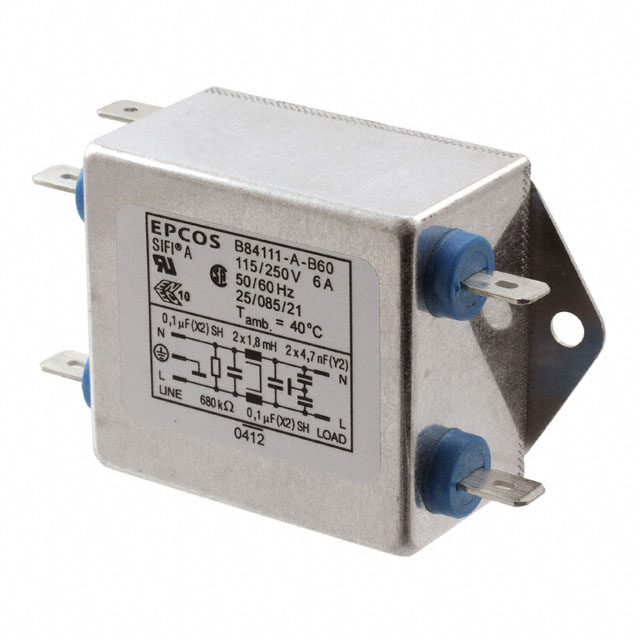

The B84111A0000B060 is a single-phase EMI power line filter from the SIFI-A series, rated for 250 VAC/DC at 50/60 Hz with a 6 A current capacity. It features a metal case with polyurethane potting and chassis mount installation. Key electrical parameters include a maximum leakage current of 0.5 mA and high-potential voltage ratings of 2700 V. The unit measures 63.5 mm in length, 51 mm in width, and 32 mm in height, weighing approximately 130 g.

Power Line Filter Modules Feature Summary

• Single-stage interference suppression designed for normal insertion loss applications
• Robust metal housing construction with UL 94 V-0 rated polyurethane potting
• Chassis mounting configuration for secure panel integration

Power Line Filter Modules Applications

• Industrial electronic equipment requiring EMC compliance
• Power supply input stages for noise attenuation
• General purpose AC power line filtering

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix to confirm terminal type and current rating. Confirm RoHS compliance status and relevant safety certifications such as UL or VDE prior to procurement. Ensure mechanical dimensions match the target chassis opening. Validate that the rated voltage and current exceed the application requirements.

Power Line Filter Modules Selection Notes

Select this component for single-phase applications requiring 6 A handling capability. Ensure the installation environment supports chassis mounting. Verify that the physical footprint fits the designated enclosure space. Confirm compatibility with the required termination style for the circuit board connection.

Power Line Filter Modules Part Context

This component belongs to the B84111A series of single-phase EMI filters manufactured by EPCOS, now part of TDK Electronics. The series offers various current ratings and termination options within a standardized metal case design. These filters are engineered to meet international electromagnetic compatibility standards for industrial and commercial electronics.

Power Line Filter Modules Replacement Considerations

Cross-reference with other B84111A variants for different current ratings. Verify pinout and dimensional compatibility before substituting. Consult official TDK documentation for approved alternative part numbers.
