B84111A0000B110

Power Line Filter Modules Overview

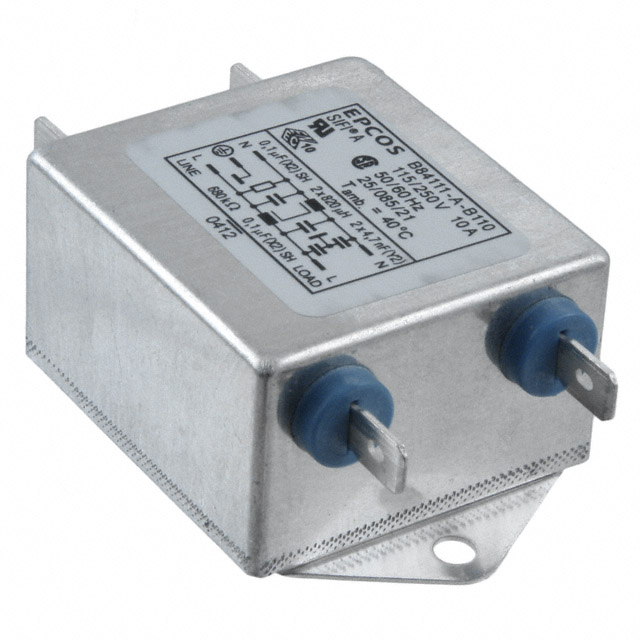

The B84111A0000B110 is a single-phase EMI line filter from the SIFI-A series, rated for 250 VAC/VDC at 50/60 Hz. It supports a rated current of 10 A and features a two-line circuit structure with a metal case and polyurethane potting (UL 94 V-0). The unit utilizes quick-connect terminals and chassis mount installation. Key electrical parameters include a maximum leakage current of 0.5 mA and high potential testing up to 2700 V. Physical dimensions are approximately 63.5 mm x 51 mm x 32 mm, weighing around 130 g.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression for two-line circuits
• Robust metal housing with UL 94 V-0 polyurethane potting
• Designed for secure panel or chassis mounting applications

Power Line Filter Modules Applications

• Industrial machinery power input stages
• Commercial equipment EMC compliance filtering
• Power supply unit input protection

Power Line Filter Modules Procurement Notes

Verify the complete part number against official TDK/EPCOS documentation to ensure correct terminal type and voltage rating. Confirm that the specific suffix matches the required current capacity and certification standards for your region. Cross-reference datasheet revisions to guarantee compatibility with existing design specifications and regulatory requirements.

Power Line Filter Modules Selection Notes

Select this component when a robust, metal-cased single-phase filter is required for 10 A applications. Ensure the chassis mounting style fits the enclosure design. Verify that the quick-connect terminal spacing aligns with the PCB or wiring harness layout. Check that the operating temperature range meets the environmental conditions of the final assembly.

Power Line Filter Modules Part Context

This component belongs to the SIFI-A series of single-phase EMI filters manufactured by EPCOS, now part of TDK Electronics. The series is characterized by its metal case construction and polyurethane potting, providing durability and consistent performance in industrial environments. It serves as a standard solution for reducing conducted emissions in AC power lines.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84111A series with different current ratings if load requirements change. Verify pinout compatibility before swapping with other single-phase filters. Consult official cross-reference lists for equivalent components from other manufacturers ensuring identical mounting and electrical characteristics.
