B84111A0000B120 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is LINE FILTER 250VAC/VDC 20A CHASS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for B84111A0000B120
- Description：LINE FILTER 250VAC/VDC 20A CHASS
- Series：B84111A
- Mfr：EPCOS - TDK Electronics
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：250V
- Voltage - Rated AC：250V
- Current：20 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Medical
- Approval Agency：CSA, ENEC, UL
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for B84111A0000B120
Power Line Filter Modules Overview

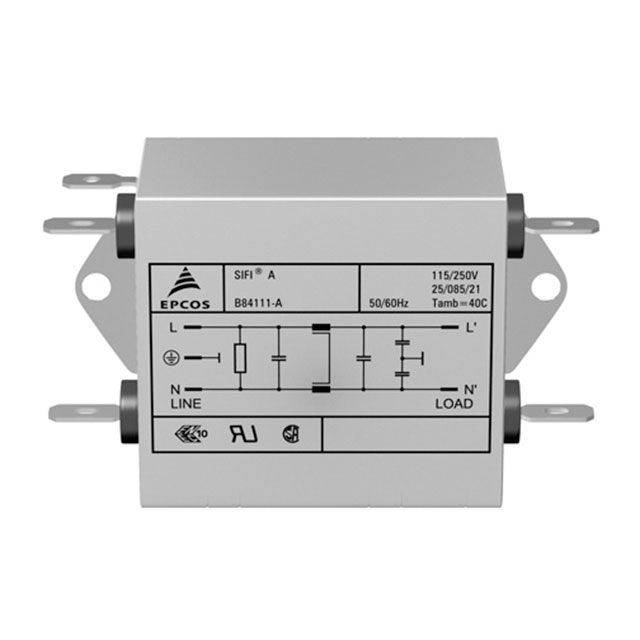

The B84111A0000B120 is a single-phase EMI filter from the SIFI-A series, rated for 250 VAC at 50/60 Hz. It supports a maximum rated current of 20 A and features an inductance of 470 µH per line. The unit utilizes faston plug connections with a 6.3 mm interface. Physical dimensions are 63.5 mm in length, 51 mm in width, and 32 mm in height. It includes a metal case with polyurethane potting (UL 94 V-0) and offers a high potential of 2700 V with a maximum leakage current of 0.5 mA.
Power Line Filter Modules Feature Summary
- Metal case construction with UL 94 V-0 polyurethane potting
- Faston plug connection interface
- High potential insulation capability
Power Line Filter Modules Applications
- Single phase EMC/EMI line filtering
- Power line filter modules
- Sine-wave output filter housing applications
Power Line Filter Modules Procurement Notes
Verify the specific ordering suffix to confirm exact electrical ratings and terminal configuration. Ensure the selected variant matches the required current rating and connection type for the target application. Cross-reference official datasheets for precise dimensional tolerances and certification details before procurement.
Power Line Filter Modules Selection Notes
Select this component for single-phase applications requiring 20 A capacity and 470 µH inductance. Confirm compatibility with 6.3 mm faston terminals and panel mount requirements. Verify voltage ratings against system specifications to ensure safe operation within the 250 VAC limit.
Power Line Filter Modules Part Context
This component belongs to the SIFI-A series of single-phase EMI filters manufactured by EPCOS (TDK). The series is designed for interference suppression in power lines, featuring robust metal casings and standardized mounting options for industrial and commercial electronic equipment integration.
Power Line Filter Modules Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation.
