B84111A0000K010

Power Line Filter Modules Overview

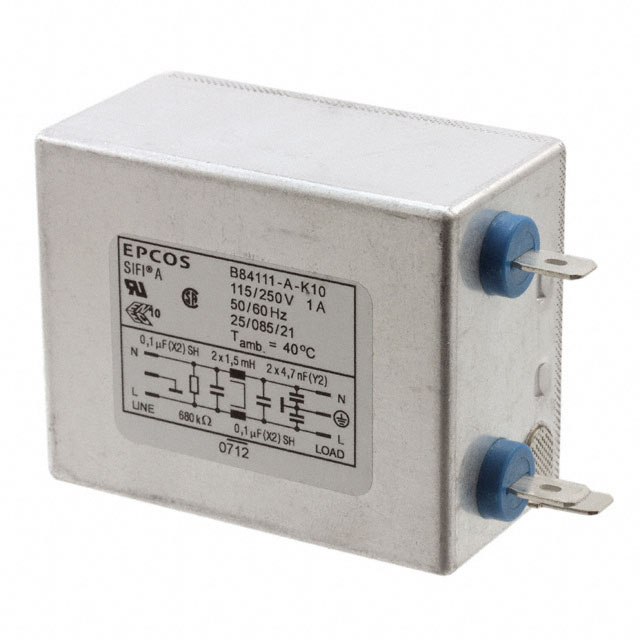

The B84111A0000K010 is a single-phase EMI filter from the SIFI-A series, manufactured by TDK Electronics. It features a rated voltage of 250 VAC/VDC and a rated current of 1 A. Designed for panel mounting, the unit utilizes an IEC connector termination type. The physical dimensions are 63.5 mm in length, 51 mm in width, and 32 mm in height. It operates at frequencies of 50/60 Hz and includes high potential insulation of 2700 V with a maximum leakage current of 0.5 mA.

Power Line Filter Modules Feature Summary

• Constructed with a metal case and polyurethane potting rated UL 94 V-0
• Designed for normal insertion loss performance in single-phase applications
• Certified by UL, CSA, and VDE standards

Power Line Filter Modules Applications

• Power supply input filtering for electronic equipment
• Industrial machinery power conditioning
• Consumer electronics noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific suffix K010 to confirm the 1 A current rating, as the B84111A series spans 1 A to 20 A. Ensure compatibility with the required IEC connector interface and panel mount configuration. Confirm RoHS compliance status and certification marks (UL, CSA, VDE) match project requirements before ordering.

Power Line Filter Modules Selection Notes

Select this component when a 1 A capacity is sufficient for the load. Compare against higher current variants in the SIFI-A series if load requirements increase. Verify that the 250 VAC rating aligns with the local mains voltage. Ensure the chassis mount form factor fits the enclosure design constraints.

Power Line Filter Modules Part Context

This part belongs to the SIFI-A series of two-line filters. The series offers rated currents from 1 A to 20 A. All units share a similar metal case construction and polyurethane potting. The B84111A prefix identifies the specific series within the TDK Electronics passive components portfolio.

Power Line Filter Modules Replacement Considerations

Check for updated TDK branding on newer production batches. Verify equivalent ratings in other single-phase EMI filter series if lead times are critical.
