B84111F0000B110

Power Line Filter Modules Overview

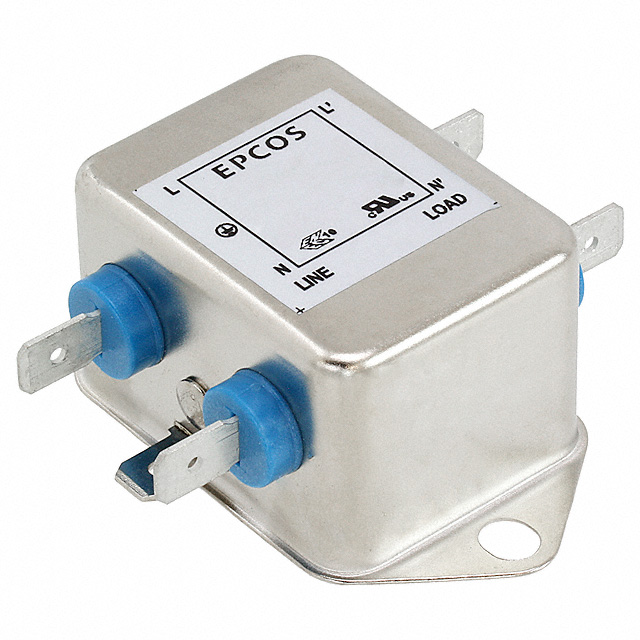

The B84111F0000B110 is a single-phase, single-stage power line EMI filter from the SIFI-A series by TDK Electronics. Rated for 250 VAC at 50/60 Hz, it supports a maximum current of 10 A. The unit features a metal case with polyurethane potting and utilizes 6.3x0.8 mm tab terminals for connection. It is designed for chassis mounting via a flange. Key electrical specifications include a leakage current of 0.369 mA and high-potential withstand voltages of DC 1770 V (line-to-line) and AC 2500 V (line-to-case).

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression for general-purpose applications.
• Robust metal enclosure construction with UL 94 V-0 rated polyurethane potting.
• Low leakage current design suitable for sensitive equipment safety requirements.

Power Line Filter Modules Applications

• General-purpose AC power line filtering in industrial electronics.
• Electromagnetic compatibility enhancement for single-phase AC powered devices.
• Chassis-mounted noise suppression in control panels and enclosures.

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'B110' against official TDK datasheets to confirm terminal type and mounting configuration. Ensure the required current rating of 10 A aligns with system operational limits. Confirm compliance with target regional standards such as UL or ENEC prior to integration.

Power Line Filter Modules Selection Notes

Select this component for single-phase applications requiring moderate attenuation and low leakage. Compare thermal derating curves if operating near the 10 A limit. Verify that the tab terminal dimensions match the PCB or busbar interface. Consider physical size constraints for chassis installation.

Power Line Filter Modules Part Context

This model belongs to the B84111F series, part of the SIFI-A family of single-phase EMI filters. These components are engineered for standard insertion loss performance in AC mains environments. The series typically offers various current ratings and voltage configurations within a standardized metal housing format.

Power Line Filter Modules Replacement Considerations

Consult official cross-reference lists for direct substitutes. Ensure replacement parts maintain identical terminal geometry, mounting hole patterns, and electrical ratings to guarantee mechanical and functional compatibility without redesign.
