B84111F0000M110

Power Line Filter Modules Overview

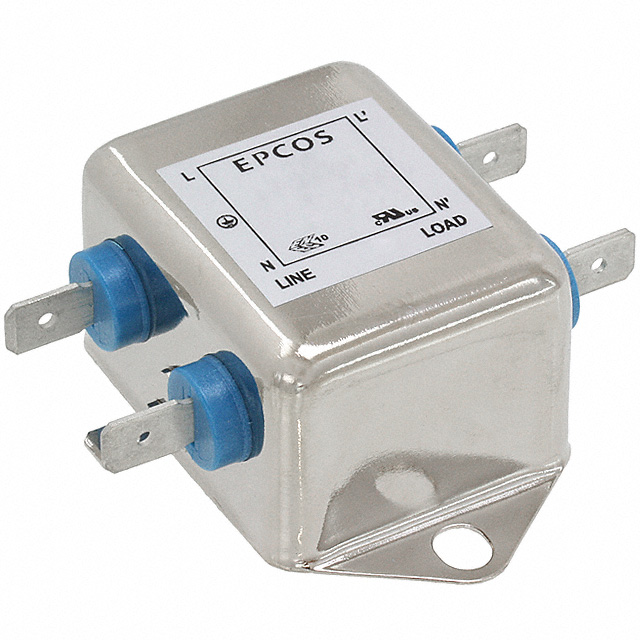

The EPCOS B84111F0000M110 is a single-phase, single-stage power line filter designed for medical applications. It operates at a rated voltage of 250 VAC and 250 VDC with a frequency range of 50 to 60 Hz. The component supports a rated current of 10 A at 40°C and features quick connect tab terminals measuring 6.3 x 0.8 mm. Constructed with a metal case and polyurethane potting (UL 94 V-0), it utilizes chassis mounting. Key electrical parameters include an inductance of 430 μH and a maximum leakage current of 0.369 mA.

Power Line Filter Modules Feature Summary

• Medical-grade safety compliance with low leakage current design
• Robust metal housing with polyurethane potting for environmental protection
• Single-stage filtering configuration for efficient noise suppression

Power Line Filter Modules Applications

• Medical equipment power supply input stages
• Healthcare device EMC/EMI mitigation
• Industrial control systems requiring certified line filtering

Power Line Filter Modules Procurement Notes

Verify the specific suffix M110 against official TDK/EPCOS documentation to confirm the exact current rating and terminal specifications. Ensure that the procurement source provides valid UL and ENEC certification marks relevant to medical device integration. Cross-reference the datasheet version to confirm compliance with current safety standards such as IEC 60601-1.

Power Line Filter Modules Selection Notes

Select this model when a single-phase filter with a 10 A rating is required for medical applications. Verify that the chassis mounting dimensions and quick-connect terminal style match the system design constraints. Confirm that the operating temperature range of -25°C to +100°C aligns with the intended environment. Ensure the low leakage current specification meets strict patient safety requirements.

Power Line Filter Modules Part Context

This component belongs to the SIFI-F series of two-line filters manufactured by EPCOS (TDK). The series is characterized by its metal case construction and suitability for normal insertion loss applications. It is part of a broader family of power line filters designed for various industrial and medical electronic equipment requiring reliable electromagnetic interference suppression.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for verified alternatives within the B84111F series. Ensure any replacement maintains identical medical certification status and physical mounting dimensions.
