B84111F0000M116

Power Line Filter Modules Overview

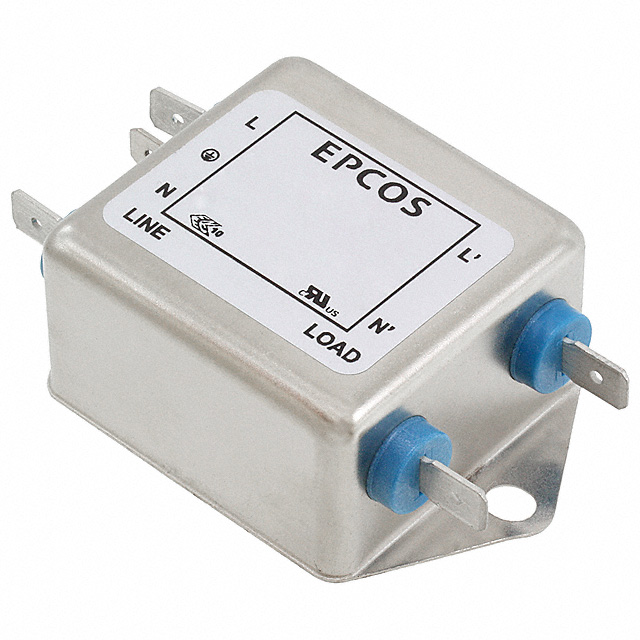

The EPCOS B84111F0000M116 is a single-phase, single-stage AC power line filter designed for electromagnetic compatibility. It features a metal case with polyurethane potting and operates at rated voltages of 250V AC/DC across 50-60Hz frequencies. The unit supports a continuous current of 16A at 40°C and includes an inductance of 650µH. Termination is achieved via screw terminals, and the device weighs approximately 130g. It is certified under UL62368-1 and RoHS standards.

Power Line Filter Modules Feature Summary

• Single-stage filtering configuration for effective noise suppression
• Robust metal housing with flame-retardant polyurethane potting
• Secure screw terminal connections for reliable circuit integration

Power Line Filter Modules Applications

• Industrial equipment EMC compliance
• Power supply input filtering
• Electronic device interference reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix M116 against official TDK documentation to confirm the 16A rating and screw terminal configuration. Ensure the procurement source provides valid UL and RoHS certification records. Cross-reference the part number with the manufacturer's current datasheet to avoid confusion with similar series variants that may differ in current capacity or termination style.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 16A capacity is required for chassis mounting applications. The screw terminal interface suits permanent installations where quick-connect tabs are unsuitable. Verify that the operating temperature range of -25°C to +100°C aligns with the environmental conditions of the target enclosure.

Power Line Filter Modules Part Context

This component belongs to the SIFI-F series of AC power line filters manufactured by EPCOS (TDK). The series is characterized by its use in normal mode insertion loss applications for single-phase circuits. The metal case construction ensures durability and effective shielding against electromagnetic interference in demanding industrial environments.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for equivalent single-phase filters with matching 16A ratings and screw terminations. Verify that any alternative maintains the same physical dimensions and mounting hole patterns to ensure compatibility with existing chassis designs.
