B84112B0000A010

Power Line Filter Modules Overview

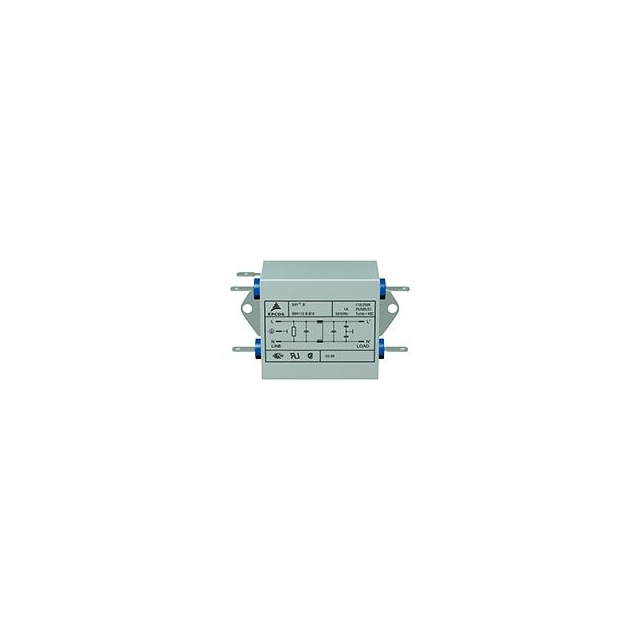

The B84112B0000A010 is a single-phase EMC line filter from the SIFI-B series, rated for 250V AC/DC and 1A current at 50/60Hz. It features a compact chassis-mount design with screw termination, optimized leakage current of 369μA, and certified compliance with UL, CSA, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides enhanced insertion loss for effective EMI/EMC suppression in power lines
• Features optimized leakage current to ensure safety in sensitive applications
• Supports versatile mounting options including chassis installation and top-hat rails

Power Line Filter Modules Applications

• Switch-mode power supplies in industrial electronics
• Telecommunications equipment
• Data systems
• Medical equipment

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official TDK-EPC documentation to confirm exact termination style and certification status. Ensure the selected variant matches the required voltage rating and current capacity for the target application circuit.

Power Line Filter Modules Selection Notes

Select this component for single-phase systems requiring robust noise reduction. Consider the physical dimensions and mounting requirements when designing the enclosure. Verify that the 1A rating aligns with the maximum load current of the protected device.

Power Line Filter Modules Part Context

This part belongs to the B84112B series of SIFI-B filters designed for enhanced insertion loss. The series covers rated currents from 1A to 20A, offering cost-optimized construction for various industrial and commercial power filtering needs.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84112B series with different current ratings or termination styles. Confirm compatibility with existing mounting hardware and electrical specifications before substitution.
