B84112B0000B010

Power Line Filter Modules Overview

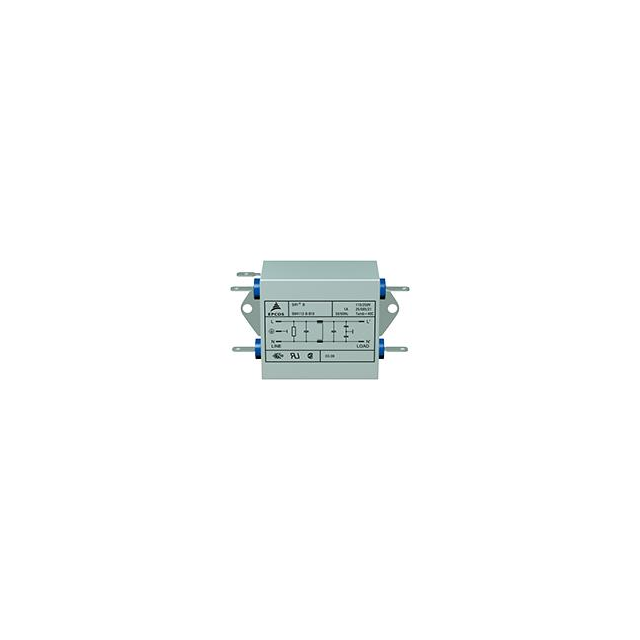

The B84112B0000B010 is a single-phase EMI/EMC power line filter manufactured by TDK (formerly EPCOS). It features a rated AC voltage of 250V and a continuous current rating of 1A. Designed for operation at 50Hz or 60Hz, the unit utilizes chassis mounting with screw terminals. Key electrical parameters include a capacitance value of 2pF, an inductance of 2mH, and a maximum leakage current of 369μA. The component operates within a temperature range of -25°C to +85°C and complies with RoHS standards.

Power Line Filter Modules Feature Summary

• Single-phase configuration designed for efficient electromagnetic interference suppression in compact applications.
• Chassis mount construction ensures secure physical installation and stable thermal performance.
• Low leakage current specification supports safe operation in sensitive environments requiring strict isolation limits.

Power Line Filter Modules Applications

• Medical equipment power supplies
• Industrial control systems
• Consumer electronics power inputs

Power Line Filter Modules Procurement Notes

Verify that the specific order suffix matches the required terminal type and current rating. Confirm compliance certifications such as UL, CSA, and IEC/EN are valid for the target market. Ensure the chassis mounting dimensions align with the enclosure design. Check for lead-free status if RoHS compliance is mandatory for the assembly process.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 1A rating is required for medical or general electronic applications. Consider the low leakage current if patient safety or sensitive signal integrity is a priority. Verify that the 250VAC rating suits the local mains voltage. Ensure the chassis mounting style fits the available space and mechanical constraints of the final product housing.

Power Line Filter Modules Part Context

This part belongs to the B84112B series of EMI filters from TDK Electronics. The series offers various current ratings and configurations for different power line filtering needs. These components are widely used in industries requiring reliable noise suppression and regulatory compliance for electronic devices connected to AC mains.

Power Line Filter Modules Replacement Considerations

Check datasheets for alternative parts with identical 1A ratings and 250VAC specifications. Verify pinout compatibility and mounting hole patterns before substitution. Ensure replacement units meet the same certification requirements for the intended application region.
