B84112B0000B060

Power Line Filter Modules Overview

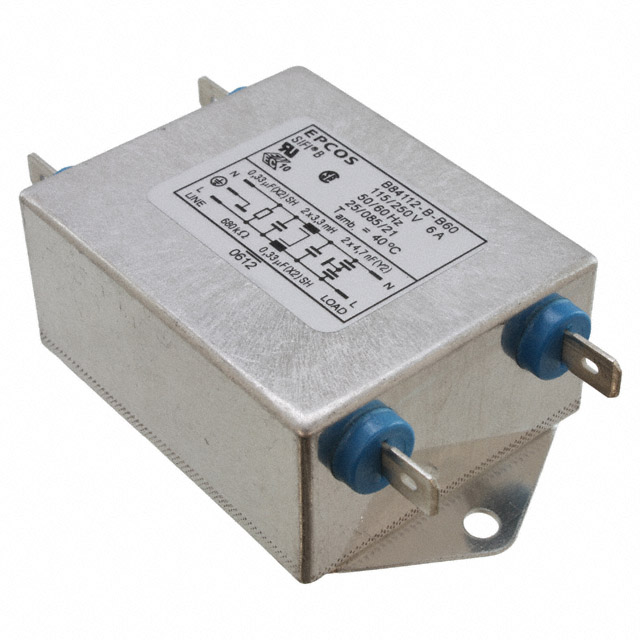

The B84112B0000B060 is a single-phase EMC line filter from the B84112B series, designed for noise suppression in industrial and general-purpose applications. It features a rated voltage of 250 V AC/DC and a rated current of 6 A at 50/60 Hz. The unit utilizes chassis mounting with screw terminals and has dimensions of 125 mm length, 84 mm depth, and 38.1 mm height. Key electrical parameters include an inductance of 2 mH, capacitance of 2 pF, and a leakage current of 369 μA. It operates within a temperature range of -25°C to 85°C.

Power Line Filter Modules Feature Summary

• SIFI-B design providing enhanced insertion loss performance
• Optimized construction balancing cost and efficiency
• Low leakage current specification suitable for sensitive equipment

Power Line Filter Modules Applications

• Switch-mode power supplies in industrial electronics
• Telecommunications data systems
• Medical equipment power lines
• General-purpose noise suppression in DC applications

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'B060' confirms the 6 A current rating and screw terminal configuration, as the B84112B series spans 1 A to 20 A variants. Confirm compliance requirements such as UL, CSA, and ENEC10 approvals are necessary for the target market. Ensure mechanical fitment matches the specified chassis mount dimensions and terminal spacing before integration.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter is required for 250 VAC/DC systems carrying up to 6 A. The SIFI-B topology offers superior attenuation compared to standard designs. Consider the low leakage current if the application involves medical or high-sensitivity instrumentation where safety isolation limits are strict.

Power Line Filter Modules Part Context

This part belongs to the EPCOS (now TDK Electronics) B84112B series of power line filters. The series is engineered for 1-phase systems and includes variants ranging from 1 A to 20 A. These filters are widely used in industrial and telecommunications sectors for electromagnetic interference suppression.

Power Line Filter Modules Replacement Considerations

Other B84112B series variants with different current ratings (e.g., B84112B0000B020 for 2 A or B84112B0000B120 for 20 A) share similar form factors but differ in electrical capacity. Verify that the substitute part meets the specific 6 A load requirement and terminal type compatibility.
