B84112B0000B110

Power Line Filter Modules Overview

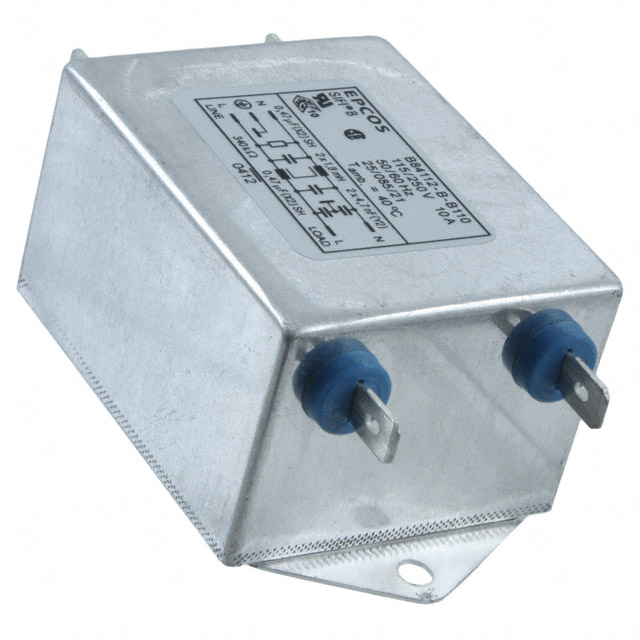

The B84112B0000B110 is a single-phase power line EMC filter manufactured by EPCOS - TDK Electronics. It features a chassis mount design with quick-connect terminals for secure installation. The component supports a maximum current of 10 A and operates at voltages up to 250 VAC or 250 VDC. Designed for 50 Hz and 60 Hz frequencies, it includes integrated capacitors and inductors to suppress electromagnetic interference. The unit complies with RoHS standards and holds UL, CSA, and IEC/EN certifications.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering for AC and DC power lines
• Chassis mounting configuration with quick-connect terminals
• Certified for international safety standards including UL, CSA, and IEC/EN

Power Line Filter Modules Applications

• Industrial machinery power supplies
• Medical equipment power inputs
• Office automation devices

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official TDK documentation to confirm terminal type and certification status. Ensure the selected variant matches the required voltage rating and current capacity for the target application. Cross-reference datasheets for mechanical dimensions and mounting hole specifications prior to procurement.

Power Line Filter Modules Selection Notes

Select this filter based on its 10 A current rating and compatibility with both AC and DC systems up to 250 V. Consider the chassis mount form factor and quick-connect terminals for integration into enclosed equipment. Verify that the single-phase configuration aligns with the system's power architecture and that the frequency range covers the operational requirements.

Power Line Filter Modules Part Context

This component belongs to the B84112B series of power line filters from EPCOS - TDK Electronics. The series provides standardized EMC solutions for various industrial and commercial applications. The B84112B0000B110 specifically denotes a 10 A rated variant within this lineup, designed for robust noise suppression in sensitive electronic environments.

Power Line Filter Modules Replacement Considerations

The B84112B0000B120 is a documented substitute offering similar functionality with a 20 A current rating. Verify that the higher current capacity does not conflict with existing thermal or spatial constraints before substitution.
