B84112G0000G125

Power Line Filter Modules Overview

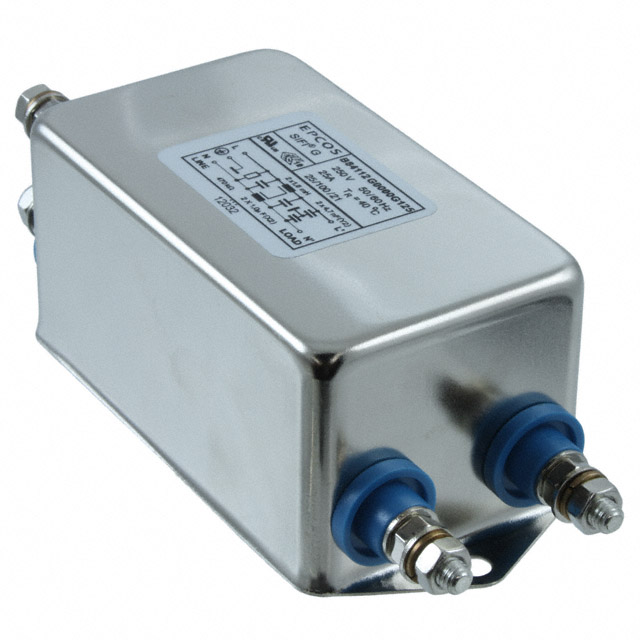

The B84112G0000G125 is a single-phase power line EMC filter manufactured by EPCOS, part of the TDK Electronics portfolio. Designed for chassis mounting, this component supports a rated current of 25A and operates at a rated voltage of 250V AC/DC. It features metal housing construction with dimensions of approximately 125mm length, 84mm depth, and 38.1mm height, weighing 0.41kg. The filter utilizes snap-in terminals for connection and includes withstand voltage specifications of DC1770V for 2 seconds between lines. It complies with RoHS standards and is engineered to suppress electromagnetic interference in industrial environments.

Power Line Filter Modules Feature Summary

• Chassis-mounted design with robust metal housing for effective shielding
• Single-phase configuration optimized for power line noise suppression
• Snap-in terminal interface for secure electrical connections

Power Line Filter Modules Applications

• Industrial automation systems
• Power supply input stages
• Electromagnetic compatibility filtering in machinery

Power Line Filter Modules Procurement Notes

Verify that the specific suffix G125 corresponds to the required terminal style and mechanical dimensions for your assembly. Confirm that the 25A current rating and 250V voltage specification align with your system's operational requirements. Ensure chassis mounting provisions match the physical footprint of the filter unit before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this model when a single-phase solution with high current capacity is required for industrial applications. The metal housing provides superior thermal management and shielding compared to plastic alternatives. Verify that the snap-in terminal type matches existing wiring harnesses or busbar configurations to ensure proper integration without additional adapters.

Power Line Filter Modules Part Context

This component belongs to the B84112 series of power line filters from EPCOS, now integrated into TDK Electronics. The series offers various current ratings and housing options for different installation needs. The B84112G variant specifically denotes the metal housing construction, distinguishing it from other series members that may use plastic enclosures or different mounting styles.

Power Line Filter Modules Replacement Considerations

Check datasheets for direct substitutes within the B84112 series that match the 25A rating and metal housing requirement. Ensure any replacement maintains the same terminal type and mounting dimensions to avoid mechanical redesigns.
