B84112G0000G136

Power Line Filter Modules Overview

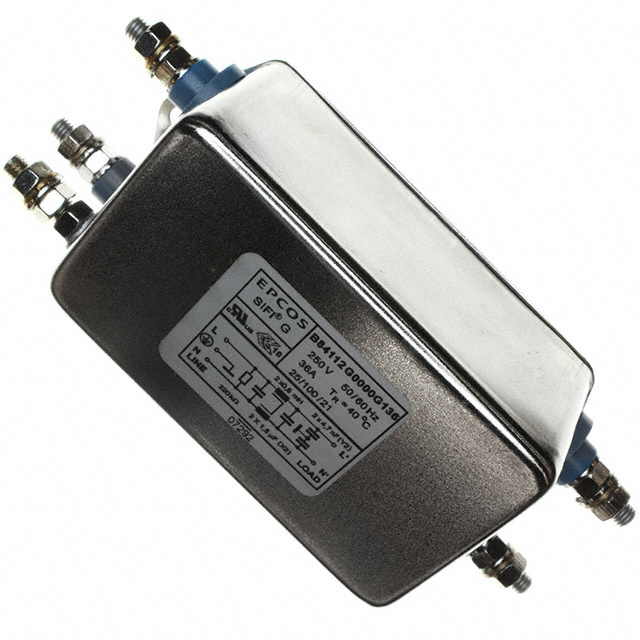

The EPCOS B84112G0000G136 is a single-phase EMC/EMI line filter module designed for AC power line applications. It features a rated voltage of 250V AC and DC, with a maximum rated current of 36A. The unit provides an inductance of 800µH and utilizes threaded post (M5) termination style for secure mounting. It operates at standard frequencies of 50/60Hz and includes withstand voltage ratings of 1770V DC between lines for 2 seconds.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Threaded post mounting for robust connection
• High current handling capability

Power Line Filter Modules Applications

• Industrial machinery power input protection
• Commercial equipment EMC compliance
• Power supply input filtering

Power Line Filter Modules Procurement Notes

Verify the complete part number including suffix G136 to ensure correct termination and rating specifications. Confirm application requirements match the 36A current and 250V voltage limits. Check datasheet for specific mounting torque and clearance distances to ensure safe operation within the intended enclosure environment.

Power Line Filter Modules Selection Notes

Select this component when single-phase noise attenuation is required for high-current circuits. Ensure the system voltage does not exceed 250V AC or DC. Verify that the physical space accommodates the module dimensions and that M5 threaded posts align with the available mounting hardware in the design.

Power Line Filter Modules Part Context

This component belongs to the TDK EPCOS B84112G series of power line EMC filters. These modules are engineered for industrial and commercial electronics to meet regulatory emission standards. The series offers various current ratings and inductance values to suit different power levels and noise profiles.

Power Line Filter Modules Replacement Considerations

Consult official TDK documentation for direct cross-references. Ensure any substitute maintains the 36A rating, 800µH inductance, and M5 termination style to preserve mechanical and electrical compatibility.
