B84112G0000M080

Power Line Filter Modules Overview

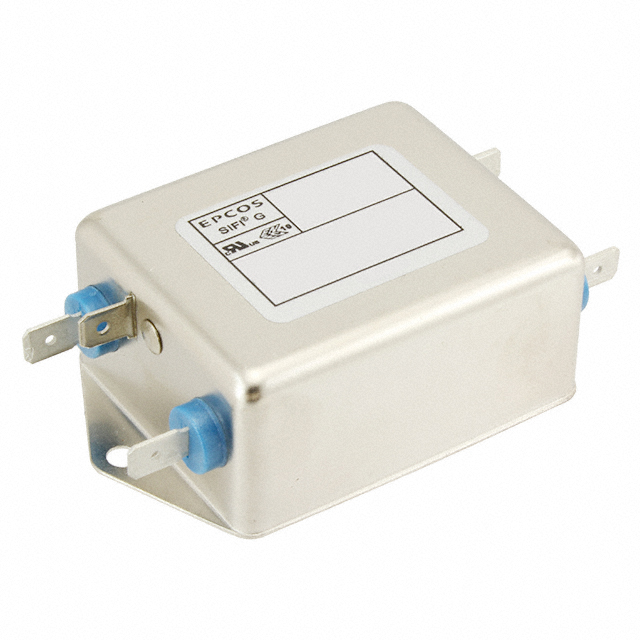

The B84112G0000M080 is a single-phase EMI/EMC power line filter manufactured by TDK-EPCOS. It features a chassis mount design with tab connectors and operates at 50 Hz or 60 Hz frequencies. The component has a voltage rating of 250 VAC and 250 VDC, with a current rating of 6 A. It includes an inductance of 3.3 mH and maintains a leakage current between 0 A and 369 µA. The unit measures 29 mm in height and complies with UL, CSA, and IEC/EN standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Designed for chassis mounting using tab connectors
• Complies with international safety standards including UL, CSA, and IEC/EN

Power Line Filter Modules Applications

• Medical equipment power filtering
• General purpose industrial electronics
• Inverter and drive system input stages

Power Line Filter Modules Procurement Notes

Verify the specific suffix M080 against official TDK datasheets to confirm exact mechanical dimensions and terminal configurations. Ensure the 6 A current rating and 3.3 mH inductance match the target circuit requirements. Confirm that the 250 VAC rating is sufficient for the local mains voltage environment. Check for required certifications such as UL or ENEC based on regional compliance needs.

Power Line Filter Modules Selection Notes

Select this filter when a compact, single-phase solution is needed for 6 A applications. The 3.3 mH inductance provides standard attenuation for common mode noise. Consider the chassis mount style if panel integration is preferred over PCB mounting. Verify thermal limits, as the operating range extends up to 100°C, ensuring adequate ventilation in enclosed spaces.

Power Line Filter Modules Part Context

This component belongs to the B84112G series of power line filters from TDK-EPCOS. These filters are engineered for EMC compliance in electronic systems. The series offers various current ratings and inductance values to suit different power levels. The B84112G variant specifically targets general-purpose and medical applications requiring reliable noise suppression.

Power Line Filter Modules Replacement Considerations

Cross-reference with B84112G0000M060 for similar specifications but verify terminal and dimensional differences. Consult TDK documentation for alternative part numbers within the B84112 series that match specific current or inductance requirements.
