B84112G0000M136

Power Line Filter Modules Overview

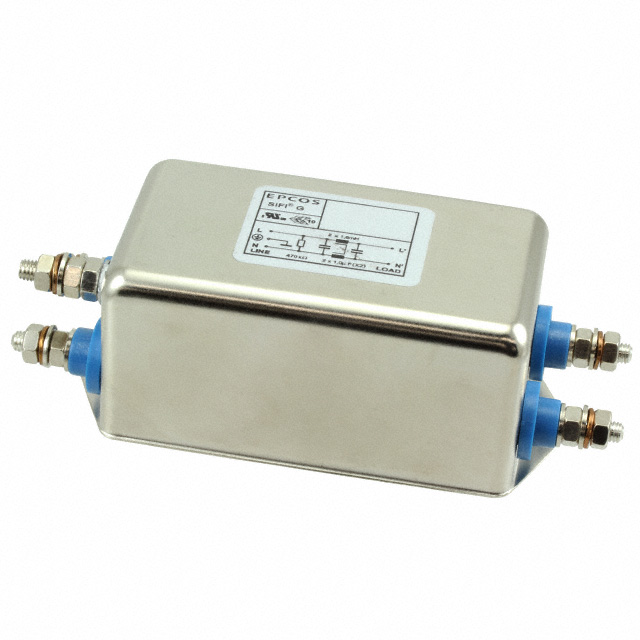

The EPCOS B84112G0000M136 is a single-phase EMC/EMI power line filter module designed for industrial applications. It features a threaded post (M5) terminal configuration and supports a rated current of 36 A at 250 V AC, 50/60 Hz. The unit operates within a temperature range of -25 to 100°C and weighs approximately 470g. Certified under UL1283 and CSA C22.2 standards, it provides low leakage current performance in a single-stage design.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic compatibility filtering architecture
• Threaded stud terminal connection for secure mounting
• Low leakage current operation for safety compliance

Power Line Filter Modules Applications

• Industrial machinery power input protection
• Electrical cabinet EMC suppression
• Single-phase equipment noise reduction

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix M136 against official TDK documentation to confirm terminal type and certification status. Ensure the application environment remains within the specified -25 to 100°C operating range. Confirm mechanical fit for M5 threaded post installation before procurement.

Power Line Filter Modules Selection Notes

Select this module for single-phase systems requiring 36 A handling capacity with stud-mounted integration. Consider thermal management due to the 100°C upper limit. Verify that the single-stage topology meets the required attenuation levels for the specific electromagnetic interference profile of the target equipment.

Power Line Filter Modules Part Context

This component belongs to the TDK power line filter module series, formerly associated with EPCOS. These modules are engineered for robust electromagnetic compatibility in demanding environments, utilizing standardized mounting interfaces for easy integration into industrial power distribution systems.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Ensure any replacement maintains the 36 A rating, M5 terminal interface, and UL/CSA certifications to guarantee system safety and compliance.
