B84113C0000A030

Power Line Filter Modules Overview

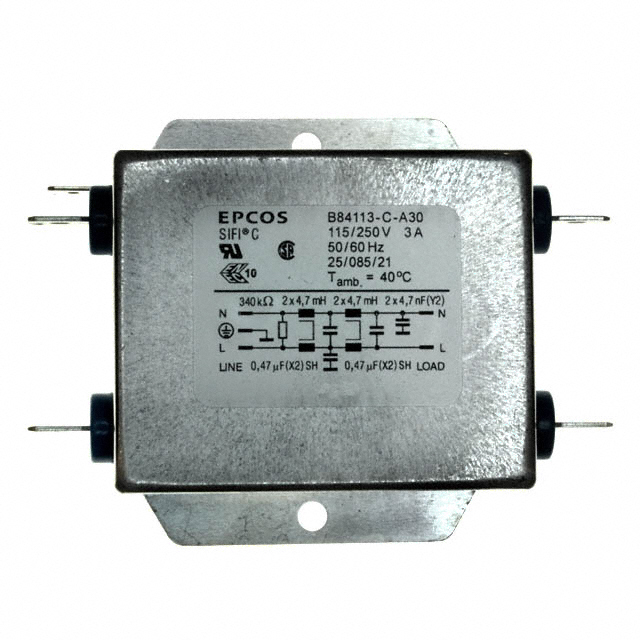

The B84113C0000A030 is a single-phase line filter manufactured by EPCOS (TDK). It features a rated voltage of 250 VAC/VDC and a rated current of 3 A. Designed for chassis mounting, the component operates at frequencies of 50/60 Hz. The unit incorporates an IP21 housing suitable for sine-wave output applications. Key electrical specifications include a high potential of 2700 V and a maximum leakage current of 14 mA. The physical dimensions are approximately 44.5 mm in length, with a height of 28±1 mm and a depth of 0.8 mm.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Enclosed in an IP21 protective housing for enhanced safety
• Engineered specifically for sine-wave output filter configurations

Power Line Filter Modules Applications

• Chassis-mounted installation in industrial electronics
• Power supply input filtering for low-power devices
• Sine-wave output filter integration in converters

Power Line Filter Modules Procurement Notes

Verify that the specific application requires a 3 A rated current and 250 VAC/VDC operating voltage. Confirm that chassis mounting is feasible within the equipment design. Ensure compatibility with 50/60 Hz frequency standards. Check if the IP21 housing rating meets the environmental protection requirements of the installation site.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase filter is required for low-current applications. It is suitable for systems where chassis mounting is preferred over panel or PCB mounting. Consider the IP21 rating for basic personnel protection against solid objects. Verify that the 3 A current capacity aligns with the load requirements to prevent overheating or performance degradation.

Power Line Filter Modules Part Context

This part belongs to the B84113 series of EMC filters from EPCOS, now part of TDK Electronics. The series focuses on single-phase line filters designed for various electronic equipment. These components are engineered to meet international safety and EMC standards, providing reliable noise suppression in compact form factors suitable for dense electronic assemblies.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS documentation for direct substitutes. Cross-reference with other B84113 variants if current ratings differ. Ensure any replacement maintains the same voltage, current, and mounting specifications.
