B84113C0000A060

Power Line Filter Modules Overview

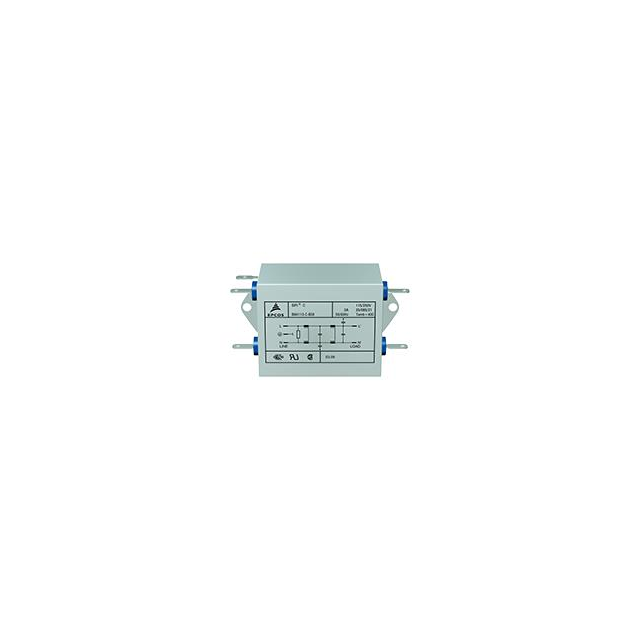

The B84113C0000A060 is a single-phase power line filter from the SIFI-C series, rated for 250 V AC/DC at 50/60 Hz with a 6 A current capacity. It features a two-stage configuration designed for very high insertion loss and chassis mounting via tab connectors. The unit operates within a standard industrial frequency range and utilizes a metal case construction.

Power Line Filter Modules Feature Summary

• Two-stage architecture providing very high insertion loss for effective noise suppression
• Chassis mount design with tab connectors for secure installation
• Metal case construction ensuring structural integrity

Power Line Filter Modules Applications

• Single-phase power systems requiring EMI/EMC filtering
• Medical equipment power supplies
• Industrial machinery control units

Power Line Filter Modules Procurement Notes

Verify component authenticity through authorized TDK Electronics distributors or certified partners. Confirm that the specific part number matches project requirements, noting that this item may be classified as obsolete in certain catalogs. Request original manufacturer documentation to validate specifications before integration into critical designs.

Power Line Filter Modules Selection Notes

Select this model when high attenuation is required for single-phase applications. Ensure the system voltage does not exceed 250 V AC/DC and the load current remains within the 6 A limit. Verify that chassis mounting space accommodates the physical dimensions and that tab connector interfaces align with the PCB or busbar layout.

Power Line Filter Modules Part Context

This component belongs to the SIFI-C series of power line filters manufactured by EPCOS, now part of TDK Electronics. The series specializes in single-phase filtration solutions offering robust electromagnetic interference reduction for sensitive electronic circuits operating on standard mains frequencies.

Power Line Filter Modules Replacement Considerations

Consult official TDK Electronics substitution guides for verified alternatives. Cross-reference technical parameters such as insertion loss curves, current ratings, and physical dimensions to ensure compatibility with existing board layouts and performance requirements.
