B84113C0000B030

Power Line Filter Modules Overview

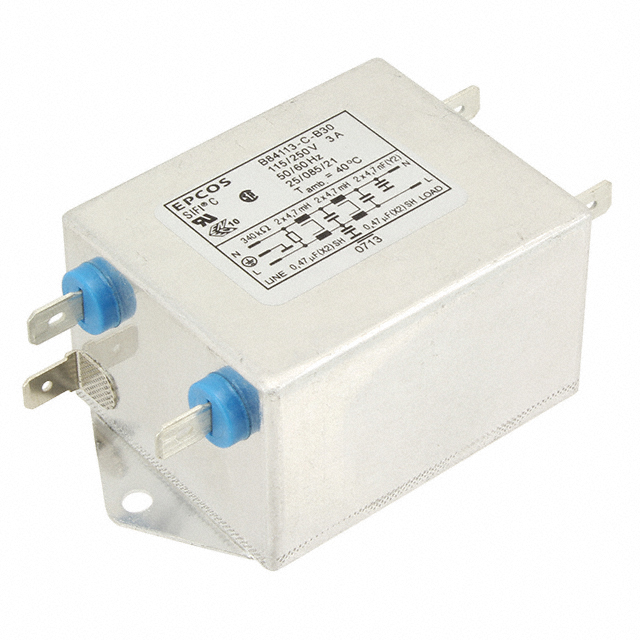

The B84113C0000B030 is a single-phase EMC power line filter from the TDK Electronics B84113H series, rated for 3 A maximum current and 250 V AC/DC. Designed for 50 Hz and 60 Hz operation, it features a chassis mount configuration with quick-connect terminals. Key electrical parameters include 2 pF capacitance, 4 mH inductance, and a leakage current of 369 μA. The unit operates within a temperature range of -25°C to +100°C and measures 52 mm in length, 89.5 mm in depth, and 38 mm in height.

Power Line Filter Modules Feature Summary

• Provides high insertion loss for effective electromagnetic interference suppression
• Utilizes a robust chassis mounting design for secure installation
• Incorporates quick-connect terminals for simplified wiring integration

Power Line Filter Modules Applications

• Industrial machinery control systems
• Power supply units requiring EMI filtering
• Electronic equipment compliant with IEC/EN standards

Power Line Filter Modules Procurement Notes

Verify the complete part number against official TDK documentation to ensure correct terminal type and voltage rating. Confirm that the required insertion loss characteristics align with specific regulatory compliance needs. Check for any specific ordering suffixes that may indicate alternative packaging or certification variations before finalizing procurement orders.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 3 A rating and low leakage current is required. Ensure the application environment falls within the specified -25°C to +100°C operating temperature range. Verify that the chassis mounting dimensions and quick-connect terminal style are compatible with the existing system design constraints.

Power Line Filter Modules Part Context

This component belongs to the B84113H series of EMC filters manufactured by TDK Electronics. The series offers various current ratings including 3 A, 6 A, and 10 A options. These filters are designed to meet international safety and EMC standards such as UL, CSA, and IEC/EN for power line applications.

Power Line Filter Modules Replacement Considerations

Official substitute part numbers within the same series include B84113C0000B060 and B110 for higher current requirements. Verify compatibility before substitution.

Power Line Filter Modules FAQ

What is the maximum leakage current for this filter?

The maximum leakage current is specified as 369 μA.

Does this filter support both AC and DC voltages?

Yes, the filter is rated for 250 V AC/DC operation.
