B84113C0000B060

Power Line Filter Modules Overview

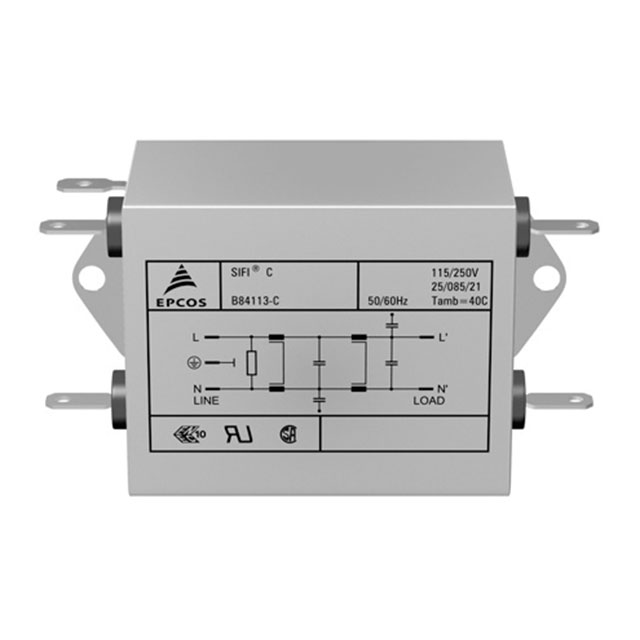

The B84113C0000B060 is a single-phase EMC power line filter from the TDK EPCOS B84113H series. It supports rated voltages of 250V AC/DC at 50Hz and 60Hz frequencies with a maximum current rating of 6A. The unit features a two-stage configuration utilizing 4mH inductance and 2pF capacitance to achieve high insertion loss. Designed for chassis mounting, it employs quick-connect tab terminals for circuit integration. The component operates within a temperature range of -25°C to +100°C, with physical dimensions of 52mm length, 89.5mm depth, and 38mm height.

Power Line Filter Modules Feature Summary

• Provides very high insertion loss through a two-stage SIFI-C filter architecture designed for effective electromagnetic interference suppression.
• Supports dual voltage ratings of 250V AC and 250V DC for versatile application in various power systems.
• Utilizes quick-connect tab terminals to facilitate secure and efficient installation on printed circuit boards or terminal strips.

Power Line Filter Modules Applications

• Electromagnetic compatibility filtering for single-phase power lines
• Noise suppression in industrial electronic equipment
• Power supply input stages for consumer appliances

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official TDK documentation to confirm electrical characteristics and termination style. Ensure the selected variant matches the required current rating and mounting configuration for the target design. Cross-reference certification marks such as UL, CSA, and IEC/EN with the manufacturer's datasheet to validate compliance with regional safety standards before procurement.

Power Line Filter Modules Selection Notes

Select this component based on the requirement for a two-stage filter topology offering high attenuation in single-phase applications. Confirm that the 6A current rating and 250V voltage limit align with the system's operational parameters. Evaluate the chassis mount form factor and tab connector type against available board space and wiring constraints. Verify thermal performance requirements against the specified operating temperature range.

Power Line Filter Modules Part Context

This component belongs to the B84113H series of power line filters manufactured by TDK EPCOS. The series is engineered for single-phase systems, providing robust noise reduction capabilities. These filters are integral to maintaining signal integrity and regulatory compliance in electronic devices susceptible to electromagnetic interference.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Ensure any replacement maintains identical current, voltage, and mounting specifications.
