B84113H0000B060

Power Line Filter Modules Overview

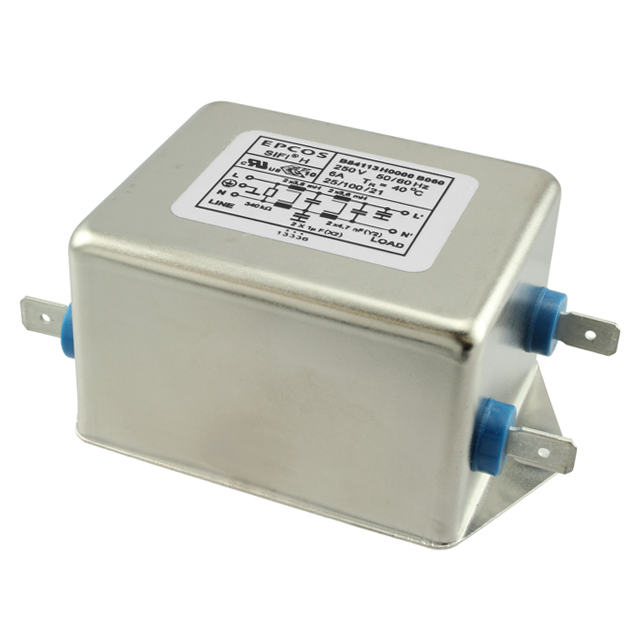

The B84113H0000B060 is a single-phase EMC/EMI line filter from the TDK B84113H series, rated for 250V AC/DC and 6A maximum current. It features a two-stage configuration with 4mH inductance and 2pF capacitance, designed for 50/60Hz operation. The unit utilizes chassis mounting with quick-connect terminals and operates within a temperature range of -25°C to 100°C. Physical dimensions are 52mm length, 89.5mm depth, and 38mm height, with a leakage current of 0.369mA.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure installation
• Quick-connect terminal interface for simplified wiring

Power Line Filter Modules Applications

• General-purpose electromagnetic compatibility filtering
• Power supply input stages
• Industrial equipment noise reduction

Power Line Filter Modules Procurement Notes

Verify the complete part number against official TDK documentation to ensure correct current rating and terminal type. Confirm that the specific application requirements align with the 6A rating and 250VAC/DC voltage limits. Check for any required safety certifications relevant to the target market before procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, two-stage filter is required for 6A applications. Ensure the chassis mounting style fits the enclosure design. Verify that the quick-connect terminals match the available connector types in the system architecture.

Power Line Filter Modules Part Context

This component belongs to the TDK B84113H series of power line filters. The series offers various current ratings and configurations for EMI suppression. This specific model provides a balanced solution for moderate current applications requiring robust noise attenuation.

Power Line Filter Modules Replacement Considerations

Consult TDK datasheets for alternative part numbers within the B84113H series or other compatible families. Ensure any substitute matches the electrical ratings, physical dimensions, and terminal configuration.
