B84113H0000B110

Power Line Filter Modules Overview

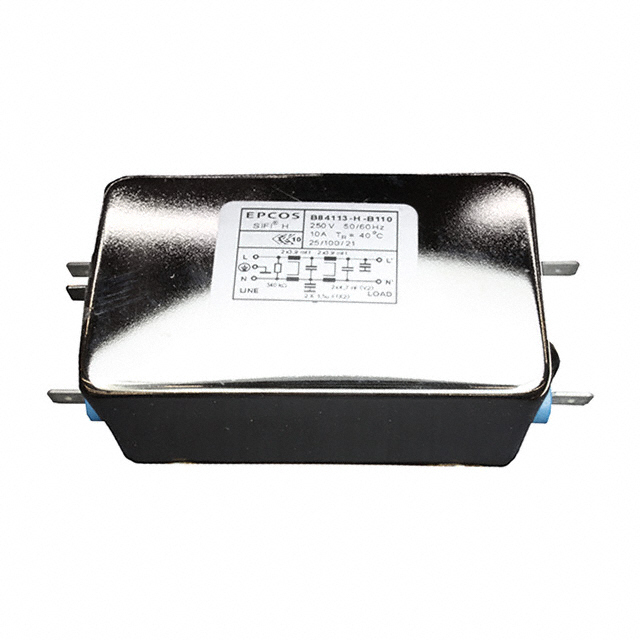

The B84113H0000B110 is a single-phase EMC/EMI line filter from the SIFI-H series, rated for 10 A and 250 V AC/DC. It features a two-stage design with 4 mH inductance and 2 μF capacitance, operating at 50/60 Hz. The unit utilizes quick-connect terminals and chassis mounting. Dimensions are 91 mm length, 51 mm depth, and 43 mm height. It operates between -25°C and 100°C with zero leakage current.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for high insertion loss
• Chassis mount construction with quick-connect terminals
• Zero leakage current specification

Power Line Filter Modules Applications

• Industrial power supply input stages
• Medical equipment noise suppression
• IT equipment EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix code to confirm terminal type and current rating. Ensure the application voltage does not exceed 250 V AC/DC. Confirm chassis mounting hole alignment matches the 91 x 51 mm footprint. Check insulation requirements against UL1283 standards.

Power Line Filter Modules Selection Notes

Select this model for applications requiring high attenuation in compact spaces. The two-stage design offers superior performance compared to single-stage alternatives. Verify that the 10 A continuous current rating meets system load requirements. Ensure ambient temperature remains within the specified operational range.

Power Line Filter Modules Part Context

This component belongs to the TDK EPCOS SIFI-H series of single-phase filters. These units are designed for very high insertion loss in power line applications. The series supports various current ratings and terminal configurations for diverse industrial needs.

Power Line Filter Modules Replacement Considerations

Check for identical electrical ratings and physical dimensions when sourcing substitutes. Verify terminal compatibility and mounting hole patterns. Ensure replacement parts meet the same safety certifications.
