B84113H0000B116

Power Line Filter Modules Overview

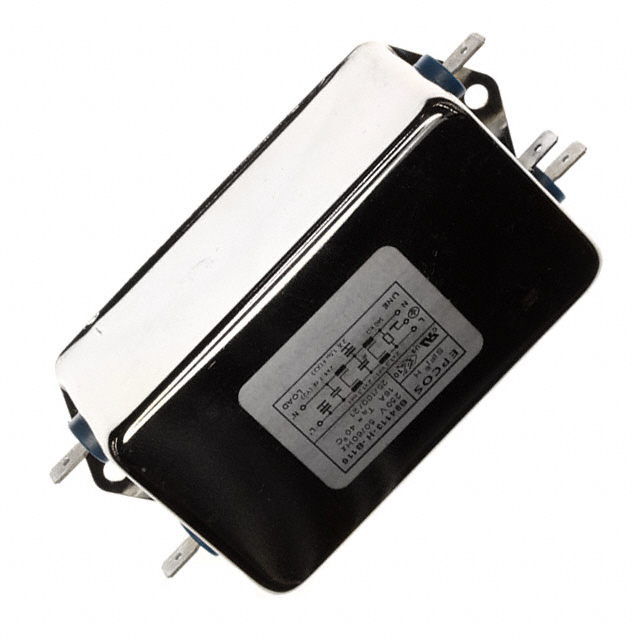

The B84113H0000B116 is a single-phase EMC power line filter from the TDK EPCOS B84113H series. It features a two-stage configuration designed for chassis mounting with tab terminals. The component supports a rated voltage of 250 V AC (50/60 Hz) and 250 V DC, with a rated current of 16 A referenced to a 40 °C ambient temperature. It operates within a temperature range of -25 °C to 100 °C and undergoes a test voltage of 1770 V DC for 2 seconds between lines.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture providing high insertion loss for effective electromagnetic interference suppression
• Chassis mount design utilizing tab connectors for secure mechanical installation
• Rated for 16 A continuous current at 40 °C reference temperature

Power Line Filter Modules Applications

• Industrial equipment requiring single-phase power line filtering
• Medical devices needing certified EMC compliance
• General electronic systems requiring EMI/EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix against official TDK documentation to confirm terminal type and current ratings. Ensure the application environment stays within the specified -25 °C to 100 °C operating range. Confirm that the 16 A rating aligns with the thermal conditions of the final assembly, as ratings are typically referenced to 40 °C.

Power Line Filter Modules Selection Notes

Select this model when a two-stage single-phase filter is required for 250 VAC applications. The tab terminal style dictates the connection method. Verify that the physical dimensions and mounting requirements fit the chassis space. Ensure the 16 A current capacity meets the load requirements under expected operating temperatures.

Power Line Filter Modules Part Context

This component belongs to the B84113H series of SIFI-H filters, which are engineered for very high insertion loss. The series is part of TDK's broader portfolio of EMC components aimed at ensuring electromagnetic compatibility in consumer and industrial electronics. These filters are designed to improve system reliability by mitigating conducted emissions.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Generic cross-references may not match the specific two-stage configuration or tab terminal specifications.
