B84113H0000G120

Power Line Filter Modules Overview

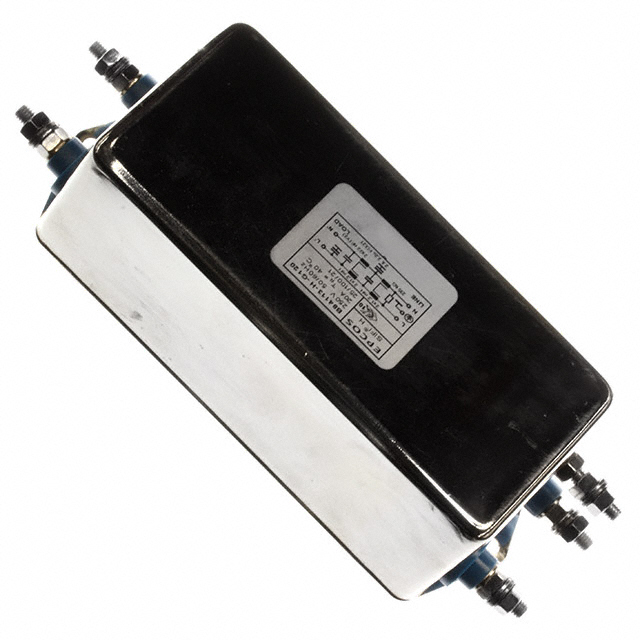

The B84113H0000G120 is a single-phase EMI power line filter manufactured by TDK Electronics. It features a two-stage filtering architecture designed for AC mains applications up to 250V and 20A at 40°C. The unit provides an inductance of 1.2mH with a maximum leakage current of 1.73mA. It utilizes threaded M5 posts for termination and chassis mounting, ensuring secure installation in industrial environments.

Power Line Filter Modules Feature Summary

• Two-stage electromagnetic interference suppression
• Threaded post termination for robust connection
• Chassis mount design for stable integration

Power Line Filter Modules Applications

• Industrial machinery power inputs
• Medical equipment supply lines
• Office automation devices

Power Line Filter Modules Procurement Notes

Verify the specific suffix G120 against official TDK documentation to confirm the exact leakage current rating and termination style. Ensure the procurement channel provides original manufacturer packaging and valid traceability certificates to guarantee component authenticity and compliance with safety standards.

Power Line Filter Modules Selection Notes

Select this model when high current capacity and low leakage are required for sensitive loads. The threaded post interface suits heavy-duty chassis mounting. Verify that the enclosure allows adequate airflow for thermal management within the specified operating temperature range during continuous operation.

Power Line Filter Modules Part Context

This component belongs to the TDK EPCOS B8411x series of single-phase power line filters. These units are engineered for EMC/EMI suppression in AC power circuits. The series offers various configurations tailored for different current ratings and mounting requirements across industrial and commercial sectors.

Power Line Filter Modules Replacement Considerations

Cross-reference part numbers such as B84113H0000M120 or B84113H0000R120 from official substitution lists. Confirm identical electrical parameters and mechanical dimensions before implementation to ensure compatibility with existing PCB layouts and enclosures.
