B84113H0000G136

Power Line Filter Modules Overview

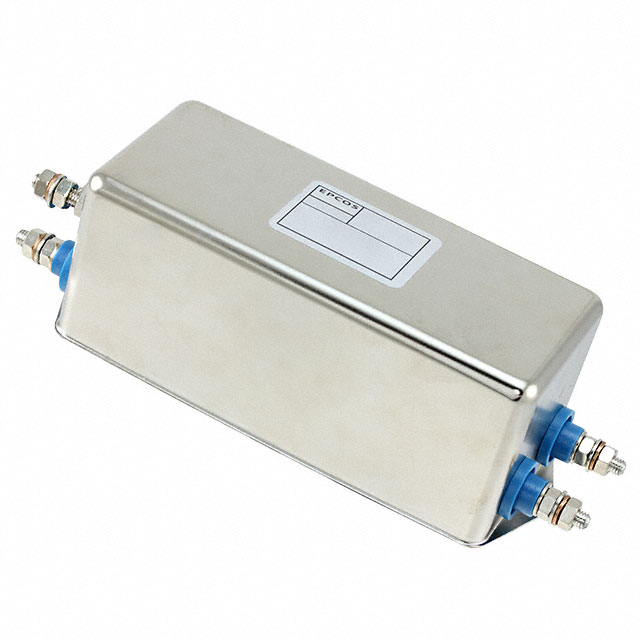

The B84113H0000G136 is a single-phase, two-stage EMC line filter from the B84113H series by TDK (EPCOS). It supports a maximum current of 36 A and operates at voltages up to 250 V AC/DC. Designed for 50 Hz and 60 Hz frequencies, it features a 500 µH inductance and utilizes threaded bolt M5 connections. The unit is chassis-mounted with dimensions of 52 mm length, 89.5 mm depth, and 38 mm height. It complies with RoHS standards and holds ENEC10, UL, and cUL certifications.

Power Line Filter Modules Feature Summary

• Two-stage interference suppression design for enhanced noise attenuation
• Robust chassis mounting capability using threaded bolt terminals
• High current handling capacity suitable for demanding power applications

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment electromagnetic compatibility
• Power supply input stages

Power Line Filter Modules Procurement Notes

Verify that the specific part number B84113H0000G136 matches the required 36 A rating and M5 threaded post interface. Confirm compliance requirements such as UL and ENEC10 are necessary for the target market. Ensure mechanical clearance accommodates the specified chassis mount dimensions before procurement.

Power Line Filter Modules Selection Notes

Select this component when high current ratings up to 36 A are required alongside strict EMC performance. The two-stage architecture provides superior attenuation compared to single-stage alternatives. Verify that the operating temperature range and voltage ratings align with the system's electrical specifications and environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the B84113H series of power line filters manufactured by TDK Electronics. The series offers various current ratings and connection types. This specific model represents a high-current variant designed for robust industrial and commercial power distribution systems requiring reliable interference suppression.

Power Line Filter Modules Replacement Considerations

Direct substitutes within the same series include B84113H0000M060 for lower current applications. Cross-reference datasheets to ensure identical mounting styles and electrical characteristics before substitution.
