B84113H0000M030

Power Line Filter Modules Overview

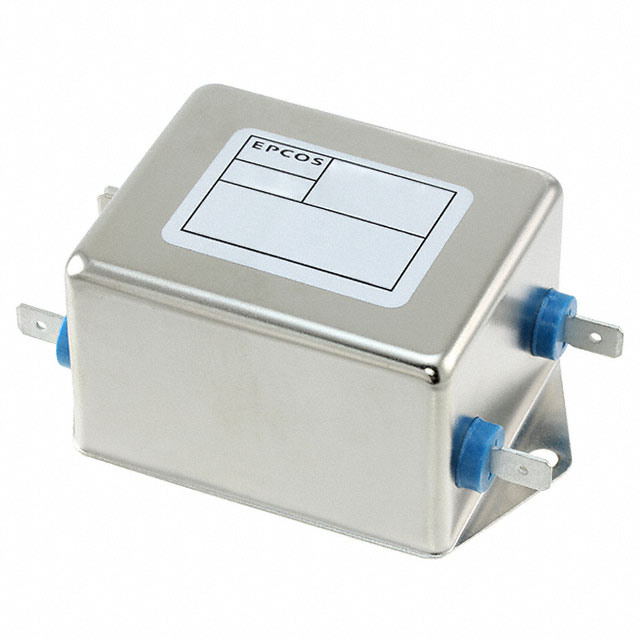

The B84113H0000M030 is a single-phase EMI/EMC power line filter from the TDK SIFI-H series, rated for 250 VAC and 3 A. It features a chassis mount design with tab connectors and operates at 50/60 Hz. Key electrical parameters include 4 mH inductance, 2 pF capacitance, and a leakage current of up to 369 μA. The unit measures 52 mm x 89.5 mm x 38 mm and functions within a temperature range of -25°C to +100°C.

Power Line Filter Modules Feature Summary

• Provides very high insertion loss for effective electromagnetic interference suppression
• Utilizes a robust metal housing suitable for secure chassis mounting
• Designed for low leakage current applications requiring safety compliance

Power Line Filter Modules Applications

• Medical equipment power input stages
• Industrial control systems
• Office automation devices

Power Line Filter Modules Procurement Notes

Verify the specific suffix M030 against official TDK documentation to confirm the exact termination style and leakage current specifications. Ensure the procurement channel provides original manufacturer packaging to guarantee component authenticity and traceability prior to integration.

Power Line Filter Modules Selection Notes

Select this component when high attenuation performance is required for sensitive electronics. The 3 A rating and 250 VAC limit define the operational envelope. Verify that the chassis mounting footprint and tab connector dimensions align with the target enclosure design constraints.

Power Line Filter Modules Part Context

This component belongs to the B84113H series of single-phase filters manufactured by TDK Electronics (formerly EPCOS). These filters are engineered for applications demanding significant noise reduction in power lines while maintaining compact physical profiles for standard industrial enclosures.

Power Line Filter Modules Replacement Considerations

Consult official TDK cross-reference lists for verified substitutes. Generic equivalents may not match the specific insertion loss curves or safety certifications required for regulated medical or industrial environments.
