B84113H0000M110

Power Line Filter Modules Overview

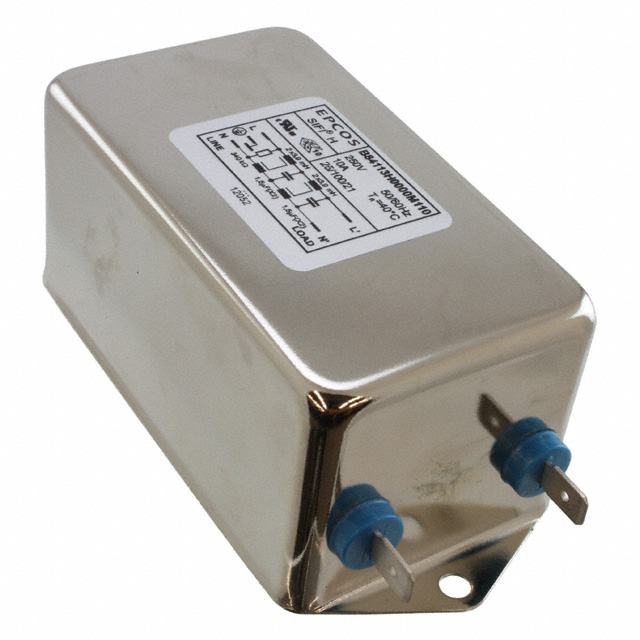

The B84113H0000M110 is a single-phase EMC/EMI line filter from the SIFI-H series, designed for general-purpose applications. It operates at rated voltages of 250V AC and 250V DC with a maximum current of 10A at 50/60Hz. The component features an inductance of 3.9mH to 4mH and utilizes lug termination for chassis mounting. It functions within a temperature range of -25°C to 100°C and includes UL1283 certification.

Power Line Filter Modules Feature Summary

• Provides very high insertion loss for effective EMI suppression
• Designed for single-phase power line filtering applications
• Utilizes robust chassis mounting configuration

Power Line Filter Modules Applications

• General-purpose electronic equipment requiring EMI filtering
• Single-phase AC/DC power input stages
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific part number B84113H0000M110 against official TDK/EPCOS documentation to confirm technical specifications. Ensure compatibility with system voltage, current, and mounting requirements before procurement. Cross-reference datasheets for accurate dimensional and electrical data.

Power Line Filter Modules Selection Notes

Select this component for single-phase applications requiring 10A capacity and 250V rating. Consider the chassis mounting style and lug termination when designing PCB or panel layouts. Verify thermal operating limits between -25°C and 100°C match the environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the B84113H series of SIFI-H filters manufactured by EPCOS, now part of TDK Electronics. These filters are engineered for high insertion loss performance in electromagnetic interference suppression tasks across various industrial and commercial power supply designs.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for verified alternatives. Generic cross-references may not guarantee identical insertion loss characteristics or physical dimensions.
