B84113H0000M116

Power Line Filter Modules Overview

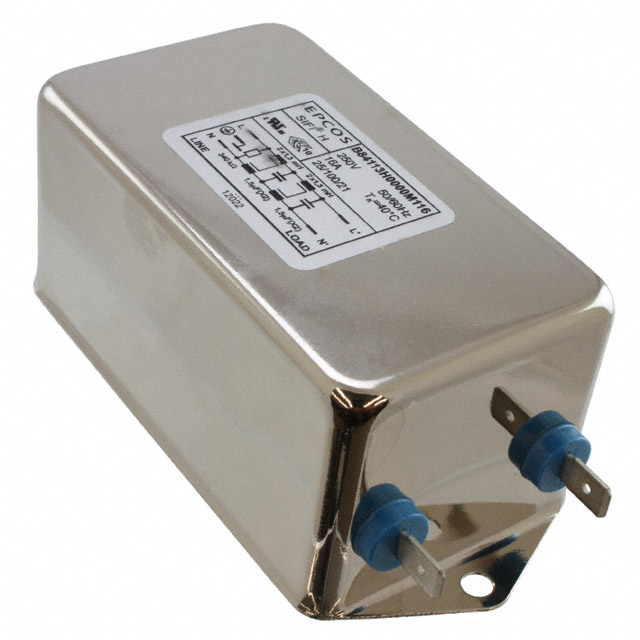

The B84113H0000M116 is a single-phase EMC line filter from the TDK B84113H series, rated for 16 A maximum current and 250 V AC/DC. Designed for 50 Hz and 60 Hz operation, it features a 4 mH inductance and 1.5 pF capacitance. The component utilizes chassis mounting with tab connectors and operates within a temperature range of -25°C to 100°C. It exhibits a leakage current of 0 mA and measures 91 mm in length, 51 mm in depth, and 43 mm in height.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Engineered for high-current applications up to 16 amperes
• Constructed for secure chassis mounting via tab terminals

Power Line Filter Modules Applications

• Industrial electronic equipment requiring EMI filtering
• Power supply input stages for machinery
• Medical device power interfaces

Power Line Filter Modules Procurement Notes

Verify the specific part number against official TDK documentation to confirm electrical ratings and terminal configuration. Ensure compatibility with chassis mounting requirements and tab connector specifications. Cross-reference safety certifications such as UL or IEC standards relevant to your target market before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter supporting 16 A continuous current is required. Confirm that the 250 V rating aligns with the system voltage. Verify that the tab terminal style matches the mating connector design. Ensure the operating temperature range meets environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the TDK B84113H series of power line filters. The series offers various current ratings and configurations for EMC compliance. This specific model provides a balance of high current handling and compact dimensions for industrial use.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Ensure any replacement maintains identical current, voltage, and inductance ratings. Verify terminal type and mounting dimensions match the existing design constraints.
