B84114D0000A060

Power Line Filter Modules Overview

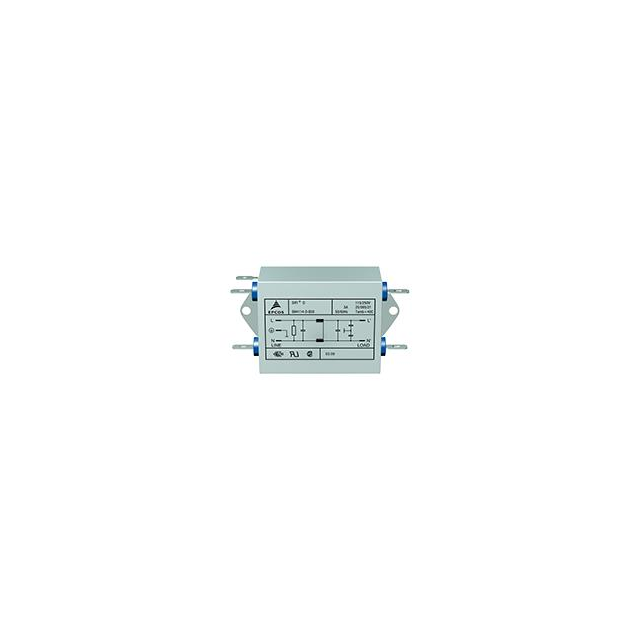

The B84114D0000A060 is a single-phase EMC/EMI line filter from the TDK (formerly EPCOS) B84114D series. It features a chassis mount configuration with quick-connect terminals for secure installation. The component is rated for 250V AC/VDC and supports a continuous current of 6A at operating frequencies between 50Hz and 60Hz. Designed as a single-stage filter, it complies with RoHS3 standards and holds CSA, ENEC, and UL certifications for global safety compliance.

Power Line Filter Modules Feature Summary

• Provides effective electromagnetic interference suppression in low-voltage networks
• Features a robust chassis-mount design for stable mechanical integration
• Utilizes quick-connect terminals for simplified wiring and assembly

Power Line Filter Modules Applications

• Medical equipment requiring certified EMI filtering
• Industrial automation systems
• Low-voltage network power input stages

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK documentation to ensure correct current rating and terminal configuration. Confirm that the selected variant matches the required voltage and frequency specifications for the target application. Check for updated packaging or environmental compliance data prior to final procurement decisions.

Power Line Filter Modules Selection Notes

Select this component based on its 6A current capacity and single-phase architecture. Ensure the chassis mounting style fits the enclosure design. Verify that the quick-connect terminal type aligns with the system's wiring harness. Confirm certification requirements such as UL or ENEC are met by this specific part number.

Power Line Filter Modules Part Context

This component belongs to the B84114D series of line filters manufactured by TDK Electronics. The series offers various current ratings and configurations for EMC applications. This specific model represents a higher current option within the single-stage filter lineup, designed for robust industrial and medical use cases.

Power Line Filter Modules Replacement Considerations

Consult the official B84114D series datasheet for alternative part numbers with different current ratings or terminal styles. Ensure any substitute maintains the same voltage rating, mounting type, and certification approvals.
