B84114D0000B110

Power Line Filter Modules Overview

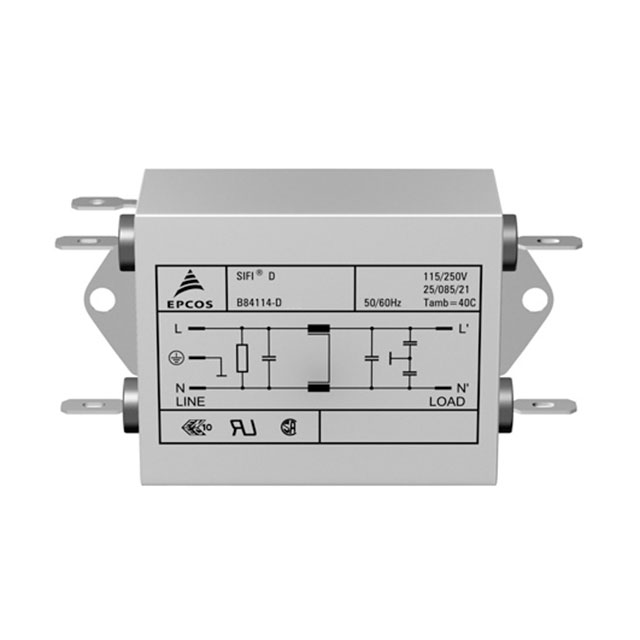

The B84114D0000B110 is a single-phase power line EMC filter from the SIFI-D series, manufactured by EPCOS - TDK Electronics. It features a rated voltage of 250 V~ and operates at frequencies of 50 to 60 Hz. The component has a rated current capacity of 10 A and utilizes tab connectors for termination. Designed for chassis mounting, it provides high insertion loss for electromagnetic interference suppression in low-voltage networks.

Power Line Filter Modules Feature Summary

• Provides high insertion loss for effective electromagnetic interference suppression
• Designed for use in low-voltage AC power networks
• Utilizes tab connector termination style for circuit integration

Power Line Filter Modules Applications

• Single-phase power line filtering in low-voltage networks
• Electromagnetic compatibility (EMC) suppression in industrial equipment
• Chassis-mounted noise reduction for electronic systems operating at 50/60 Hz

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against official TDK/EPCOS documentation to ensure correct terminal type and current rating specifications. Confirm that the chassis mount configuration matches the mechanical design requirements of the target application. Ensure compliance with RoHS3 standards if required by the procurement specification.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase filtering with a 10 A current rating. Ensure the operating temperature range of -25 to 85°C aligns with the environmental conditions. Verify that the chassis mounting style and tab terminals are compatible with the assembly process and available space constraints.

Power Line Filter Modules Part Context

This part belongs to the B84114D series of SIFI-D filters, which are engineered for high insertion loss performance. The series is designed for robust operation in low-voltage networks, providing reliable EMC protection for sensitive electronic loads connected to standard AC power supplies.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for verified alternatives. Ensure any replacement maintains the same 10 A rating, 250 V~ voltage class, and chassis mount form factor.
