B84115E0000A060

Power Line Filter Modules Overview

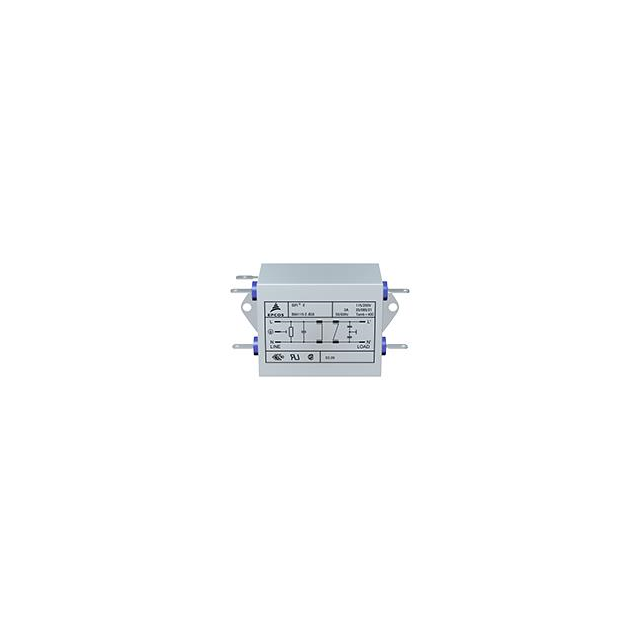

The B84115E0000A060 is a single-phase EMC power line filter from the SIFI-E series, rated for 250 V AC/DC at 60 Hz. It supports currents up to 10 A and features a two-stage configuration with 2 nF capacitance and 47 μH inductance. Designed for flange mounting with spade terminals, it operates between -25°C and 85°C. The unit measures 159 mm in length, 50.8 mm in depth, and 44.5 mm in height, with a leakage current of 1.73 mA.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture designed for high insertion loss in low-voltage networks
• Flange-mounted chassis installation utilizing spade terminal connections
• Compliant with RoHS environmental standards

Power Line Filter Modules Applications

• Single-phase system noise suppression
• Low-voltage network compliance
• General industrial equipment EMI reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix against official TDK documentation to confirm exact electrical ratings and terminal configurations. Ensure the selected variant matches the required voltage and current specifications for the target application. Cross-reference certification marks such as CSA, ENEC, or UR if regulatory approval is mandatory for the end product deployment.

Power Line Filter Modules Selection Notes

Select this component when a two-stage solution is required for single-phase applications operating at 250 V AC/DC. The flange mount design suits chassis integration where space constraints allow for the specified dimensions. Verify that the 10 A rating and 47 μH inductance align with the circuit's electromagnetic interference mitigation requirements.

Power Line Filter Modules Part Context

This part belongs to the B84115E series, which comprises single-phase EMC filters manufactured by TDK Electronics under the EPCOS brand. The series targets general-purpose noise suppression in low-voltage networks, offering various current ratings and mounting options within a standardized form factor.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for variants within the B84115E series. Confirm that alternative part numbers maintain identical mounting styles, terminal types, and electrical performance characteristics before implementation.
