B84115E0000A110

Power Line Filter Modules Overview

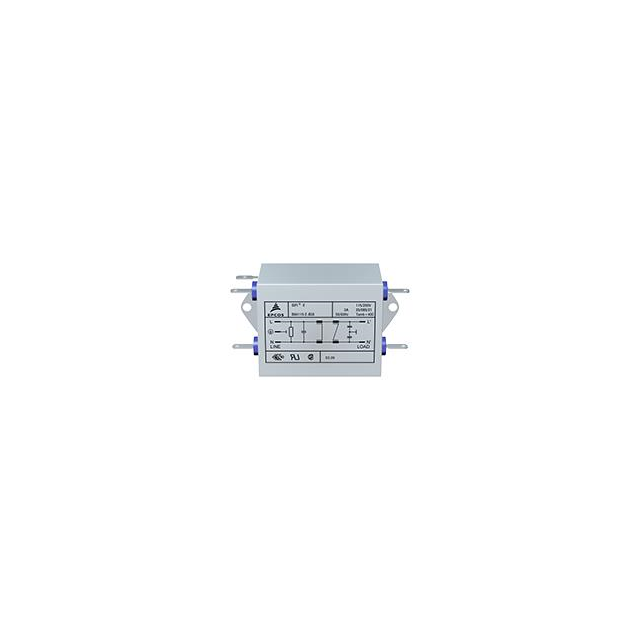

The B84115E0000A110 is a single-phase EMI power line filter from the SIFI-E series, designed for high insertion loss in low-voltage networks. It features a two-stage configuration with a rated voltage of 250V AC/DC and a rated current of 10A. The unit operates at 50/60Hz and utilizes a DIN rail mounting type. Key electrical parameters include an L1 inductance of 100µH and an L2 inductance of 4.7mH. It supports quick-connect termination styles and includes certifications such as UL, CSA, and VDE.

Power Line Filter Modules Feature Summary

• High insertion loss performance for effective electromagnetic interference suppression
• Two-stage filtering architecture utilizing polyurethane potting for durability
• DIN rail mounting configuration for standardized industrial installation

Power Line Filter Modules Applications

• Low-voltage network compliance within specified operational values
• Industrial automation equipment requiring EMI suppression
• Power supply input stages for sensitive electronic systems

Power Line Filter Modules Procurement Notes

Verify the specific suffix against official TDK documentation to confirm exact ratings and certification status. Ensure compatibility with DIN rail standards and verify that the 10A current rating aligns with system requirements. Confirm insulation class and leakage current specifications match safety regulations for the intended deployment environment.

Power Line Filter Modules Selection Notes

Select this component when high attenuation is required for single-phase applications. Compare inductance values against noise frequency profiles to ensure adequate filtering. Verify physical dimensions and terminal types fit the enclosure design. Ensure the operating temperature range meets environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the SIFI-E series of two-line filters manufactured by EPCOS (TDK). The series is characterized by metal cases and polyurethane potting compliant with UL 94 V-0 standards. These filters are engineered for robust performance in industrial environments, offering reliable EMI suppression for general-purpose and specialized power applications.

Power Line Filter Modules Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Cross-reference inductance values and current ratings to ensure functional equivalence. Verify that any substitute maintains identical mounting configurations and certification approvals for regulatory compliance.
