B84115E0000B030

Power Line Filter Modules Overview

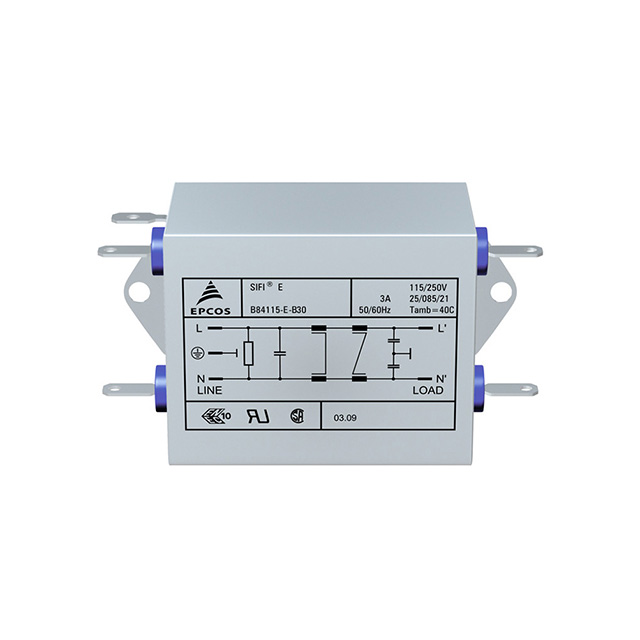

The B84115E0000B030 is a single-phase EMC line filter from the TDK EPCOS B84115E series, designed for low-voltage networks. It features a rated current of 3A and supports AC/DC voltages up to 250V at 60Hz. The unit utilizes a two-stage configuration with quick-connect terminals and chassis mounting. Key electrical parameters include a capacitance of 2nF and an inductance of 47μH. Operating temperatures range from -25°C to 85°C, with a leakage current of 1.73mA. Physical dimensions are 159mm length, 50.8mm depth, and 44.5mm height.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture provides high insertion loss for effective noise suppression
• Chassis mounting design ensures secure installation within equipment enclosures
• Quick-connect terminals facilitate rapid integration into power supply circuits

Power Line Filter Modules Applications

• Low-voltage network compliance in industrial electronics
• Power input stages for consumer appliances requiring EMI reduction
• Signal integrity protection in communication equipment

Power Line Filter Modules Procurement Notes

Verify that the specific part number matches the required current rating and voltage specifications for your application. Confirm terminal type compatibility with existing wiring harnesses. Ensure environmental ratings meet operational temperature requirements. Cross-reference datasheet values against system constraints before finalizing orders.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, two-stage filter is required for 3A applications. Consider the physical footprint and mounting style for enclosure integration. Evaluate leakage current limits against safety standards. Compare inductance and capacitance values against target frequency attenuation needs.

Power Line Filter Modules Part Context

This component belongs to the B84115E series of SIFI-E filters by TDK Electronics. These filters are engineered for high insertion loss in single-phase applications. The series supports various current ratings and terminal configurations to accommodate diverse industrial and consumer electronic designs.

Power Line Filter Modules Replacement Considerations

Consult official substitution lists for compatible alternatives within the B84115E family. Verify identical electrical characteristics and mechanical dimensions before swapping components.

Power Line Filter Modules FAQ

What is the maximum rated voltage for this filter?

The B84115E0000B030 supports a maximum rated voltage of 250V AC or DC.

How many filtering stages does this unit contain?

It contains a two-stage filtering configuration to enhance noise suppression performance.
