B84115E0000B060

Power Line Filter Modules Overview

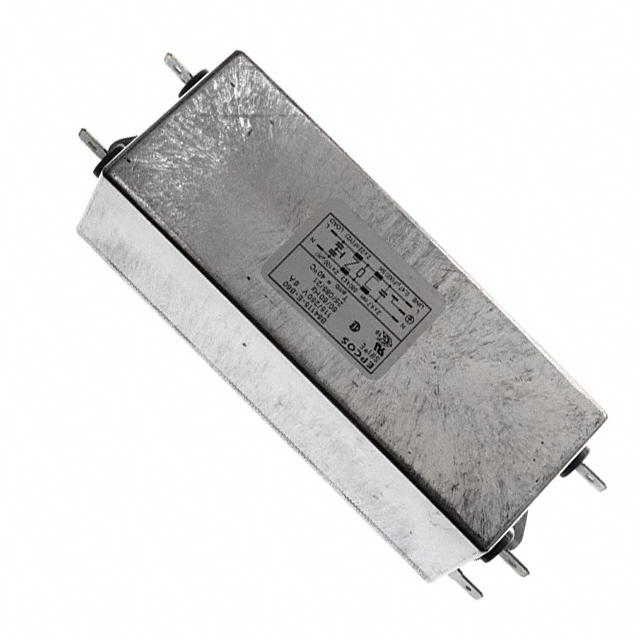

The B84115E0000B060 is a single-phase EMC/EMI power line filter from the TDK B84115E series. It supports a rated current of 6 A and operates at 250 V AC or DC. Designed for chassis mounting, it features two-stage filtering with quick-connect terminals. The unit functions within a temperature range of -25°C to 85°C and includes certifications from CSA, ENEC, and UR.

Power Line Filter Modules Feature Summary

• Two-stage filtering configuration for enhanced noise attenuation
• Chassis mounting design for secure installation
• Quick-connect terminal style for simplified wiring

Power Line Filter Modules Applications

• General purpose electronic equipment
• Low-voltage network compliance applications

Power Line Filter Modules Procurement Notes

Verify the specific part number against official TDK documentation to confirm ratings and certifications. Ensure the selected variant matches the required current and voltage specifications for the target application. Cross-reference certification marks such as CSA, ENEC, and UR with local regulatory requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component based on the 6 A current rating and 250 V AC/DC voltage limits. Confirm that the chassis mounting style and quick-connect terminals align with the system's mechanical and electrical interface constraints. Verify operating temperature compatibility with the intended environment.

Power Line Filter Modules Part Context

This component belongs to the TDK B84115E series of single-phase power line filters. These filters are designed for use in low-voltage networks to mitigate electromagnetic interference. The series offers various current ratings and configurations to suit different industrial and commercial applications.

Power Line Filter Modules Replacement Considerations

Consult official TDK documentation for verified substitute part numbers within the B84115E series or equivalent product lines. Ensure any replacement maintains identical electrical ratings, mounting style, and certification approvals.
