B84131M0001G135

Power Line Filter Modules Overview

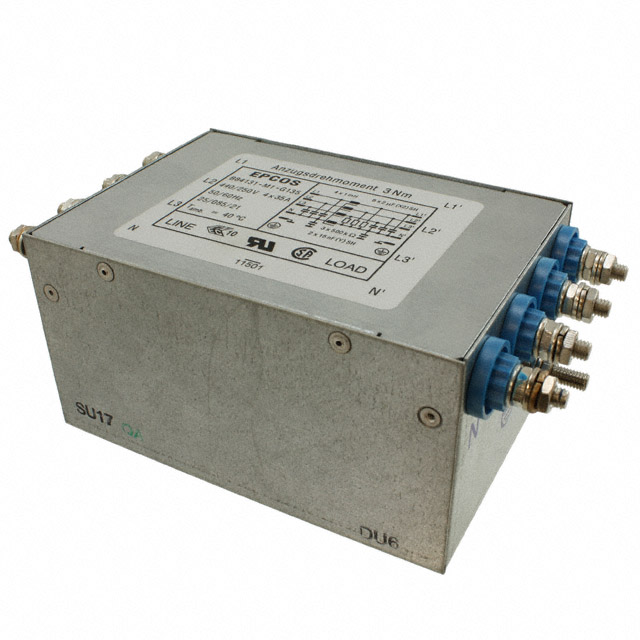

The B84131M0001G135 is a three-phase (Wye) EMC line filter manufactured by EPCOS, now part of TDK Electronics. It features a single-stage configuration designed for industrial applications. The component has a rated AC voltage of 440V and 250V, with a rated current capacity of 35A. It utilizes threaded posts (M6) for mounting and connection. This filter is engineered to suppress electromagnetic interference in power lines, ensuring compliance with emission standards while maintaining stable operation under specified electrical loads.

Power Line Filter Modules Feature Summary

• Three-phase Wye configuration for balanced load suppression
• Single-stage filtering architecture for efficient noise reduction
• Threaded post termination style for secure mechanical attachment

Power Line Filter Modules Applications

• Industrial power distribution systems
• Electromagnetic compatibility (EMC) protection for machinery
• Power line filtering in manufacturing equipment

Power Line Filter Modules Procurement Notes

Verify the specific voltage ratings (440V/250V AC) and current rating (35A) against your system requirements before procurement. Confirm that the M6 threaded post interface matches your installation hardware. Ensure the component status is active and available from authorized distributors to guarantee authenticity and supply chain reliability.

Power Line Filter Modules Selection Notes

Select this model when a three-phase Wye configuration is required for 35A applications. Consider the single-stage design if space constraints or cost efficiency are priorities over multi-stage attenuation. Verify that the operating environment supports the thermal characteristics associated with this current rating and voltage class.

Power Line Filter Modules Part Context

This component belongs to the EPCOS/TDK power line filter series, specifically designed for EMC applications. It represents the transition from EPCOS branding to TDK Electronics following corporate integration. The product line focuses on providing reliable noise suppression solutions for industrial and commercial power systems.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the B84131 series or equivalent three-phase filters from other manufacturers offering similar 35A ratings and Wye configurations. Ensure any replacement maintains the same M6 termination style and voltage specifications.
