B84131M0003A116

Power Line Filter Modules Overview

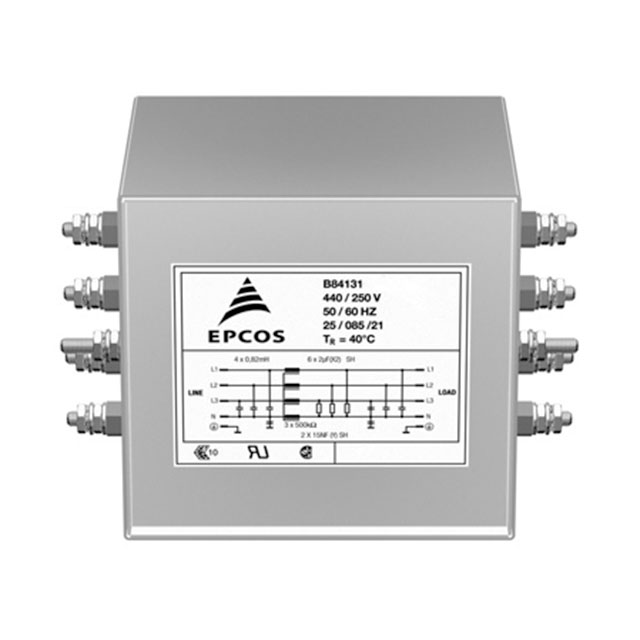

The B84131M0003A116 is a three-phase (Wye) EMC/EMI line filter manufactured by TDK Electronics. It features a single-stage design rated for 16 A current and 440 VAC phase-to-phase voltage, with 250 VAC phase-to-neutral capability at 50–60 Hz. The unit utilizes stud and tab terminals for secure mounting and electrical connection. Designed for industrial environments, it operates within a temperature range of -25°C to +85°C and weighs approximately 1.5 kg.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power systems
• Utilizes a single-stage filtering architecture for efficient noise reduction
• Supports robust mechanical integration via stud and tab terminal configurations

Power Line Filter Modules Applications

• Industrial power supply units
• Battery charging systems
• Energy-efficient electronic equipment

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm terminal dimensions and mounting hole patterns. Ensure the operating environment temperature remains within the specified -25°C to +85°C range. Confirm that the load current does not exceed the 16 A rating under all operating conditions to maintain compliance with electromagnetic compatibility standards.

Power Line Filter Modules Selection Notes

Select this component when a three-phase Wye configuration is required for EMI suppression in industrial applications. The 16 A rating suits moderate-power systems, while the 440 VAC rating aligns with standard industrial voltages. Consider the 1.5 kg weight for structural support requirements during installation.

Power Line Filter Modules Part Context

This part belongs to the EPCOS (now TDK) B84131 series of EMC filters. These components are designed to meet international electromagnetic compatibility regulations. The series offers various current and voltage ratings to accommodate different industrial power distribution needs.

Power Line Filter Modules Replacement Considerations

Consult official TDK documentation for direct cross-references. Verify that any substitute maintains identical three-phase topology, 16 A current rating, and 440 VAC insulation levels.
