B84142A0010A166

Power Line Filter Modules Overview

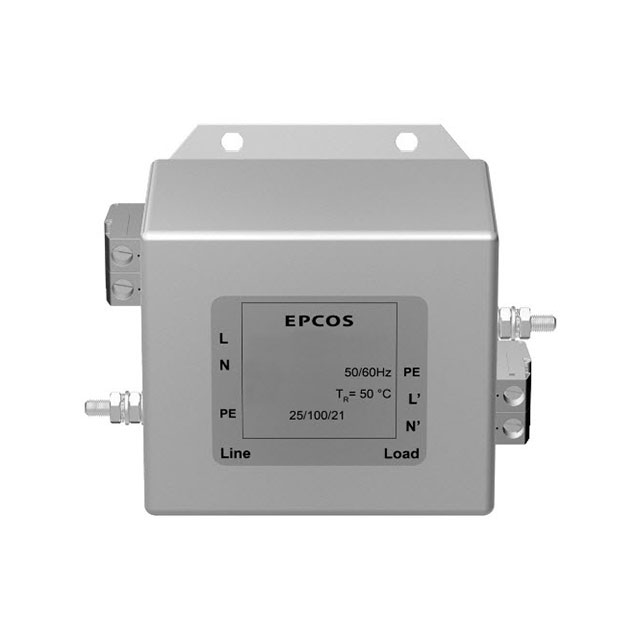

The B84142A0010A166 is a single-phase EMC line filter manufactured by EPCOS, part of TDK Electronics. It features a rated current of 10 A and supports AC/DC voltages up to 250 V at 50/60 Hz frequencies. Designed for through-hole mounting, the unit measures 89.6 mm in length, 51 mm in width, and 38 mm in height. Key electrical specifications include a leakage current of 2.59 mA and a withstand voltage of DC 1770 V between lines for two seconds. The component operates within an ambient temperature range of -25 °C to +100 °C.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic compatibility filtering for power lines
• Through-hole terminal connection method for secure installation
• Compact chassis-compatible housing dimensions

Power Line Filter Modules Applications

• Industrial equipment power input protection
• Consumer electronics noise suppression
• Information technology hardware interference reduction

Power Line Filter Modules Procurement Notes

Verify the specific suffix code against official manufacturer documentation to confirm exact performance characteristics. Ensure the selected variant matches the required voltage rating and mounting style for the target application. Cross-reference datasheets from authorized distributors to validate technical parameters before integration.

Power Line Filter Modules Selection Notes

Select this component when single-phase noise attenuation is required for low-voltage AC or DC circuits. Confirm that the 10 A current rating and 250 V voltage limit align with system requirements. Evaluate thermal management needs given the operating temperature range and ensure physical space accommodates the specified footprint dimensions.

Power Line Filter Modules Part Context

This filter belongs to the B84142 series of power line filters produced by EPCOS, now integrated into TDK Electronics. The series provides standardized EMI/EMC solutions for various electronic applications. The B84142A0010A166 specifically addresses single-phase interference mitigation in compact form factors suitable for general-purpose electronic assemblies.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with existing circuit designs if considering alternative manufacturers or series variants.
