B84142A0025R123

Power Line Filter Modules Overview

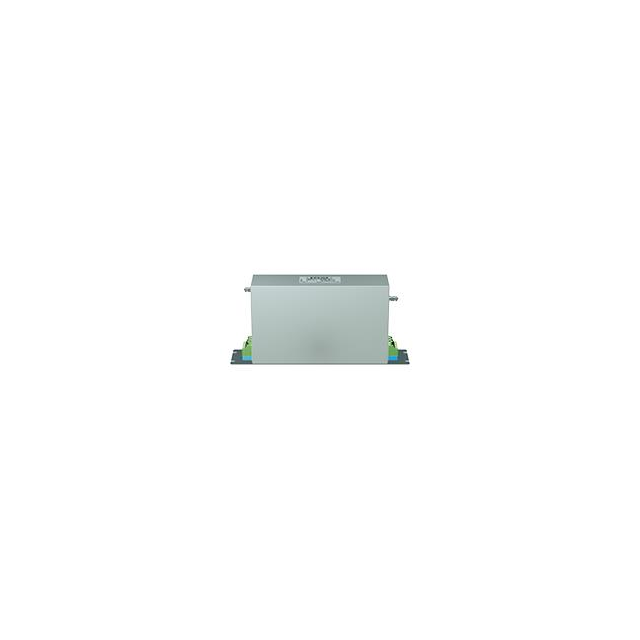

The B84142A0025R123 is a single-phase EMC/EMI line filter from the EPCOS B84142A series, designed for converter applications. It operates at a rated voltage of 520 V AC and supports a maximum current of 32 A at 50/60 Hz. The unit features panel mounting with terminal block termination. Physical dimensions are 200 mm in length, 58 mm in width, and 141.5 mm in height. It withstands a high potential of 3000 V and has a maximum leakage current of 120 mA.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines in converter systems.
• Engineered for robust performance in industrial power electronics environments.
• Utilizes terminal block connections for secure electrical interfacing.

Power Line Filter Modules Applications

• Converter applications
• Power electronics systems
• Industrial equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific ordering code against official TDK/EPCOS documentation to ensure compatibility with your system requirements. Confirm that the 32 A current rating and 520 V voltage specifications align with your operational parameters. Check for any RoHS compliance status updates or regional regulatory variations before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter is required for converters operating up to 520 V and 32 A. Ensure the physical footprint of 200x58x141.5 mm fits the enclosure design. Verify that the terminal block termination style matches the wiring infrastructure. Consider the 120 mA leakage current limit in relation to safety standards applicable to the installation environment.

Power Line Filter Modules Part Context

This part belongs to the B84142A series of EMC filters manufactured by EPCOS, now part of the TDK Group. These filters are specifically engineered for use in power electronics and converter applications where effective noise suppression is critical for maintaining signal integrity and regulatory compliance in single-phase AC power systems.

Power Line Filter Modules Replacement Considerations

Consult official TDK/EPCOS substitution guides for verified alternatives. Do not assume cross-compatibility with other series without verifying electrical ratings and physical dimensions against the original specification sheet.

Power Line Filter Modules FAQ

What is the maximum leakage current for this filter?

The maximum leakage current is specified as 120 mA.

How is this filter mounted?

It utilizes a panel mount installation type with terminal block termination.
