B84142A0030R000

Power Line Filter Modules Overview

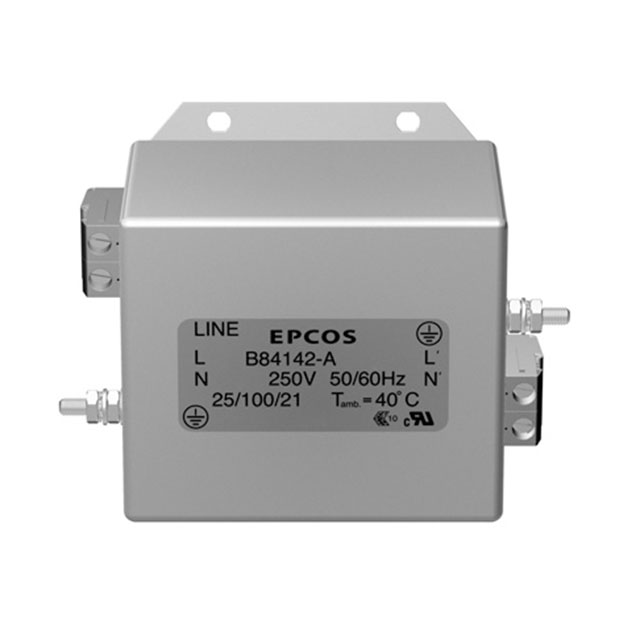

The B84142A0030R000 is a single-phase EMI filter manufactured by EPCOS (TDK). It operates at 50/60Hz with a rated voltage of 250V and a rated current of 30A. The unit features a metal package designed for panel mounting, with physical dimensions of 99mm length, 84mm width, and 68mm height. Key electrical specifications include a maximum leakage current of 8mA and a high potential withstand voltage of 2700V. It holds UL, CUL, and ENEC-10 certifications.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic interference filtering
• Metal housing construction
• Panel mount installation style

Power Line Filter Modules Applications

• Industrial power electronics
• Converter EMC applications
• Power supply input stages

Power Line Filter Modules Procurement Notes

Verify the specific certification requirements against the official datasheet, as listings may vary between UL, CUL, and ENEC standards. Confirm that the 30A current rating and 250V voltage align with the target circuit design. Ensure the panel mount form factor fits the mechanical constraints of the enclosure. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Power Line Filter Modules Selection Notes

Select this component when a robust, metal-housed single-phase filter is required for 30A applications. The 250V rating suits standard AC mains inputs. Consider the physical dimensions for chassis space allocation. Verify compatibility with the specific frequency range of 50/60Hz. Ensure the leakage current specification meets safety regulations for the intended equipment class.

Power Line Filter Modules Part Context

This component belongs to the TAC series of line filters from EPCOS (TDK). These filters are engineered for use in converters and power electronics systems. The series provides reliable noise suppression for industrial and commercial power distribution networks. The metal casing offers durability and shielding capabilities compared to plastic alternatives.

Power Line Filter Modules Replacement Considerations

Consult the official TDK EPCOS cross-reference documentation for verified substitutes. Do not assume functional equivalence based on identical ratings alone. Verify that any alternative part matches the exact physical dimensions and mounting hole patterns. Check for specific certification overlaps if regulatory compliance is mandatory.
